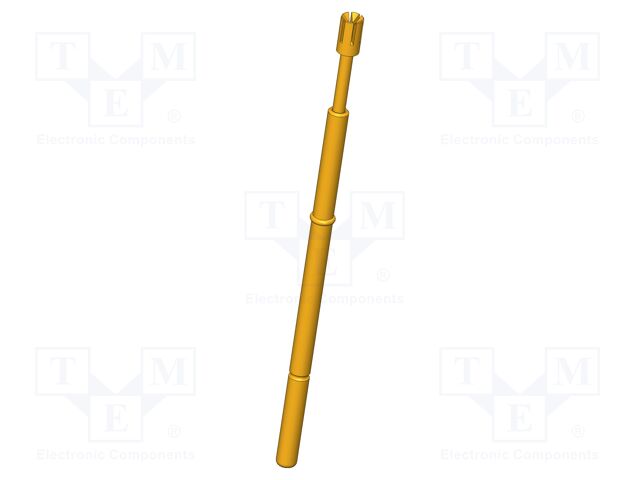

GKS-112 319 180 A 2210 C INGUN
Hersteller: INGUNCategory: Contact Probes
Description: Test needle; Operational spring compression: 4mm; 8A; Ø: 1.8mm
Mounting: push-in
Manufacturer series: GKS-112
Contact material: CuBe
Blade tip shape: cone; inverted; slotted
Contact plating: gold-plated
Test accessories features: magnetic; self-cleaning
Type of test accessories: test needle
Operating temperature: -100...200°C
Tip diameter: 1.8mm
Operational spring compression: 4mm
Maksimum spring compression: 5.3mm
Length: 40.3mm
Max. contact resistance:: 100mΩ
Current rating: 8A
Spring compression force: 2.25N
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details GKS-112 319 180 A 2210 C INGUN
Category: Contact Probes, Description: Test needle; Operational spring compression: 4mm; 8A; Ø: 1.8mm, Mounting: push-in, Manufacturer series: GKS-112, Contact material: CuBe, Blade tip shape: cone; inverted; slotted, Contact plating: gold-plated, Test accessories features: magnetic; self-cleaning, Type of test accessories: test needle, Operating temperature: -100...200°C, Tip diameter: 1.8mm, Operational spring compression: 4mm, Maksimum spring compression: 5.3mm, Length: 40.3mm, Max. contact resistance:: 100mΩ, Current rating: 8A, Spring compression force: 2.25N, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote GKS-112 319 180 A 2210 C
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
|---|---|---|---|---|---|
|
|
GKS-112 319 180 A 2210 C | Hersteller : INGUN |
Category: Contact Probes Description: Test needle; Operational spring compression: 4mm; 8A; Ø: 1.8mm Mounting: push-in Manufacturer series: GKS-112 Contact material: CuBe Blade tip shape: cone; inverted; slotted Contact plating: gold-plated Test accessories features: magnetic; self-cleaning Type of test accessories: test needle Operating temperature: -100...200°C Tip diameter: 1.8mm Operational spring compression: 4mm Maksimum spring compression: 5.3mm Length: 40.3mm Max. contact resistance:: 100mΩ Current rating: 8A Spring compression force: 2.25N |
Produkt ist nicht verfügbar |
