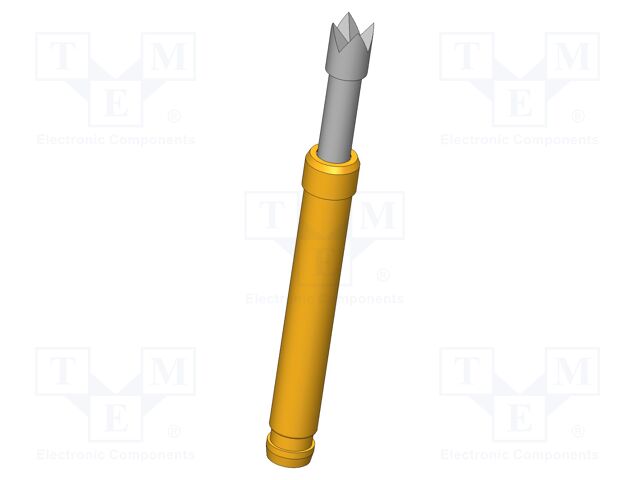

GKS-113 204 230 R 2202 C INGUN
Hersteller: INGUNCategory: Contact Probes
Description: Test needle; Operational spring compression: 4mm; 5A; Ø: 2.3mm
Type of test accessories: test needle
Operational spring compression: 4mm
Maksimum spring compression: 5.3mm
Current rating: 5A
Contact plating: rhodium plated
Max. contact resistance:: 100mΩ
Contact material: steel
Blade tip shape: 4-point; corona
Tip diameter: 2.3mm
Manufacturer series: GKS-113
Operating temperature: -100...200°C
Mounting: push-in
Test accessories features: magnetic
Length: 27.3mm
Spring compression force: 2.25N
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details GKS-113 204 230 R 2202 C INGUN
Category: Contact Probes, Description: Test needle; Operational spring compression: 4mm; 5A; Ø: 2.3mm, Type of test accessories: test needle, Operational spring compression: 4mm, Maksimum spring compression: 5.3mm, Current rating: 5A, Contact plating: rhodium plated, Max. contact resistance:: 100mΩ, Contact material: steel, Blade tip shape: 4-point; corona, Tip diameter: 2.3mm, Manufacturer series: GKS-113, Operating temperature: -100...200°C, Mounting: push-in, Test accessories features: magnetic, Length: 27.3mm, Spring compression force: 2.25N, Anzahl je Verpackung: 1 Stücke.
