Produkte > INGUN > GKS-113 214 140 R 0602 M

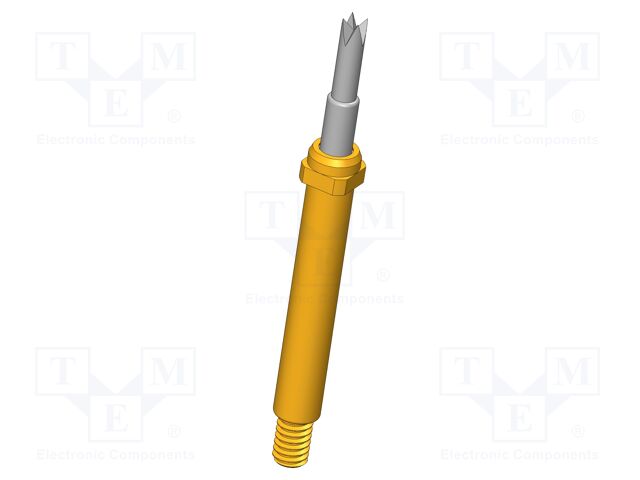

GKS-113 214 140 R 0602 M

GKS-113 214 140 R 0602 M INGUN


pVersion=0046&contRep=ZT&docId=005056AB281E1EDF83A0A99AF39160D6&compId=GKS-113-0454.pdf?ci_sign=25a6e0da67cceccb4f60fafd403c8d426c9d083a Hersteller: INGUN
Category: Contact Probes
Description: Test needle; Operational spring compression: 4mm; 5A; Ø: 1.4mm
Type of test accessories: test needle
Operational spring compression: 4mm
Maksimum spring compression: 5.3mm
Current rating: 5A
Contact plating: rhodium plated
Max. contact resistance:: 30mΩ
Contact material: steel
Blade tip shape: 4-point; corona
Tip diameter: 1.4mm
Manufacturer series: GKS-113
Operating temperature: -40...80°C
Mounting: screw-in
Test accessories features: magnetic; self-cleaning
Length: 28.3mm
Spring compression force: 0.6N
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar

Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details GKS-113 214 140 R 0602 M INGUN

Category: Contact Probes, Description: Test needle; Operational spring compression: 4mm; 5A; Ø: 1.4mm, Type of test accessories: test needle, Operational spring compression: 4mm, Maksimum spring compression: 5.3mm, Current rating: 5A, Contact plating: rhodium plated, Max. contact resistance:: 30mΩ, Contact material: steel, Blade tip shape: 4-point; corona, Tip diameter: 1.4mm, Manufacturer series: GKS-113, Operating temperature: -40...80°C, Mounting: screw-in, Test accessories features: magnetic; self-cleaning, Length: 28.3mm, Spring compression force: 0.6N, Anzahl je Verpackung: 1 Stücke.
