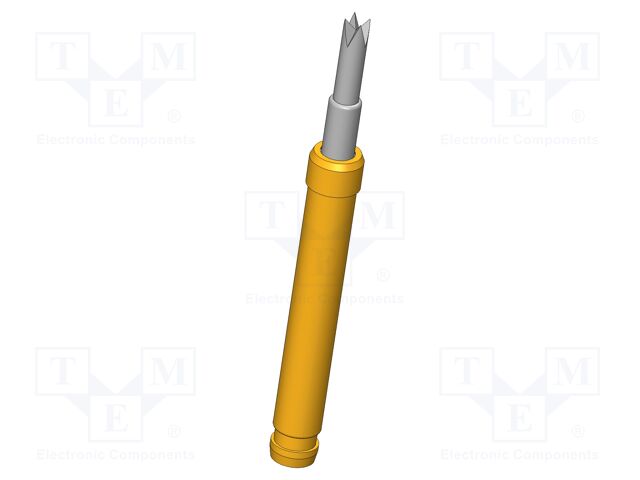

GKS-113 214 140 R 1502 INGUN
Hersteller: INGUNCategory: Contact Probes
Description: Test needle; Operational spring compression: 4mm; 5A; Ø: 1.4mm
Type of test accessories: test needle
Operational spring compression: 4mm
Maksimum spring compression: 5.3mm
Current rating: 5A
Contact plating: rhodium plated
Max. contact resistance:: 30mΩ
Contact material: steel
Blade tip shape: 4-point; corona
Tip diameter: 1.4mm
Manufacturer series: GKS-113
Operating temperature: -40...80°C
Mounting: push-in
Test accessories features: magnetic; self-cleaning
Length: 27.3mm
Spring compression force: 1.5N
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details GKS-113 214 140 R 1502 INGUN
Category: Contact Probes, Description: Test needle; Operational spring compression: 4mm; 5A; Ø: 1.4mm, Type of test accessories: test needle, Operational spring compression: 4mm, Maksimum spring compression: 5.3mm, Current rating: 5A, Contact plating: rhodium plated, Max. contact resistance:: 30mΩ, Contact material: steel, Blade tip shape: 4-point; corona, Tip diameter: 1.4mm, Manufacturer series: GKS-113, Operating temperature: -40...80°C, Mounting: push-in, Test accessories features: magnetic; self-cleaning, Length: 27.3mm, Spring compression force: 1.5N, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote GKS-113 214 140 R 1502
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
|---|---|---|---|---|---|
|
|
GKS-113 214 140 R 1502 | Hersteller : INGUN |
Category: Contact Probes Description: Test needle; Operational spring compression: 4mm; 5A; Ø: 1.4mm Type of test accessories: test needle Operational spring compression: 4mm Maksimum spring compression: 5.3mm Current rating: 5A Contact plating: rhodium plated Max. contact resistance:: 30mΩ Contact material: steel Blade tip shape: 4-point; corona Tip diameter: 1.4mm Manufacturer series: GKS-113 Operating temperature: -40...80°C Mounting: push-in Test accessories features: magnetic; self-cleaning Length: 27.3mm Spring compression force: 1.5N |
Produkt ist nicht verfügbar |
