Produkte > INGUN > GKS-113 214 140 R 1510
GKS-113 214 140 R 1510

GKS-113 214 140 R 1510 INGUN


pVersion=0046&contRep=ZT&docId=005056AB281E1EDF83A0AFAE50FAC0D6&compId=GKS-113-0756.pdf?ci_sign=5449faa7958c1657b8bde1a8a8b6a6b54cb32c2b Hersteller: INGUN
Category: Contact Probes

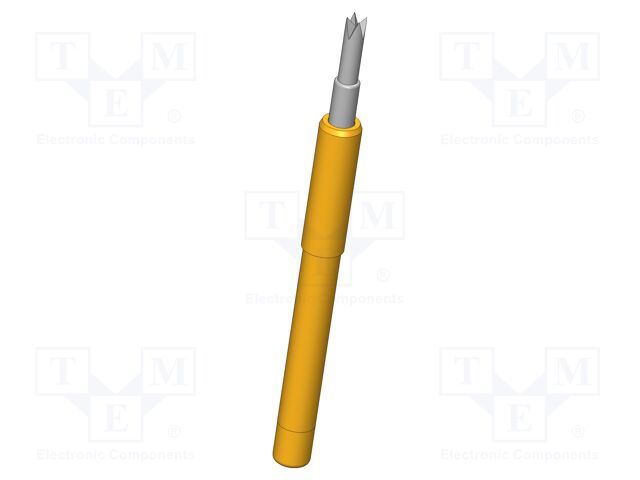

Description: Test needle; Operational spring compression: 4mm; 5A; Ø: 1.4mm
Type of test accessories: test needle
Operational spring compression: 4mm
Maksimum spring compression: 5.3mm
Current rating: 5A
Contact plating: rhodium plated
Max. contact resistance:: 30mΩ
Contact material: steel
Blade tip shape: 4-point; corona
Tip diameter: 1.4mm
Manufacturer series: GKS-113
Operating temperature: -40...80°C
Mounting: push-in
Test accessories features: magnetic; self-cleaning
Length: 35.3mm
Spring compression force: 1.5N
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar

Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details GKS-113 214 140 R 1510 INGUN

Category: Contact Probes, Description: Test needle; Operational spring compression: 4mm; 5A; Ø: 1.4mm, Type of test accessories: test needle, Operational spring compression: 4mm, Maksimum spring compression: 5.3mm, Current rating: 5A, Contact plating: rhodium plated, Max. contact resistance:: 30mΩ, Contact material: steel, Blade tip shape: 4-point; corona, Tip diameter: 1.4mm, Manufacturer series: GKS-113, Operating temperature: -40...80°C, Mounting: push-in, Test accessories features: magnetic; self-cleaning, Length: 35.3mm, Spring compression force: 1.5N, Anzahl je Verpackung: 1 Stücke.
