Produkte > INGUN > GKS-113 214 140 R 5002
GKS-113 214 140 R 5002

GKS-113 214 140 R 5002 INGUN

pVersion=0046&contRep=ZT&docId=005056AB281E1EDF83A0A7ADD0D2C0D6&compId=GKS-113-0364.pdf?ci_sign=0cd255dd9ec511c432514cc7d3ca0267876ee58c Hersteller: INGUN
Category: Contact Probes

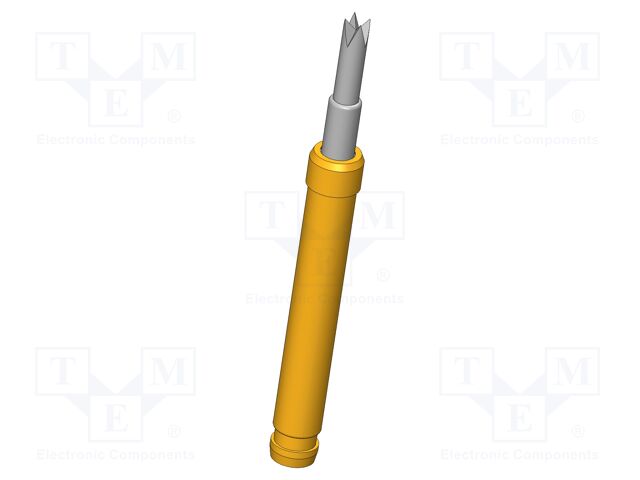

Description: Test needle; Spring compression: 4mm; 5.3mm; 5A; steel; Ø: 1.4mm
Operating temperature: -40...80°C
Manufacturer series: GKS-113
Contact material: steel
Mounting: push-in
Contact plating: rhodium plated
Test accessories features: magnetic; self-cleaning
Type of test accessories: test needle
Tip diameter: 1.4mm
Operational spring compression: 4mm
Maksimum spring compression: 5.3mm
Length: 27.3mm
Max. contact resistance:: 30mΩ
Current rating: 5A
Spring compression force: 5N
Blade tip shape: 4-point; corona
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details GKS-113 214 140 R 5002 INGUN

Category: Contact Probes, Description: Test needle; Spring compression: 4mm; 5.3mm; 5A; steel; Ø: 1.4mm, Operating temperature: -40...80°C, Manufacturer series: GKS-113, Contact material: steel, Mounting: push-in, Contact plating: rhodium plated, Test accessories features: magnetic; self-cleaning, Type of test accessories: test needle, Tip diameter: 1.4mm, Operational spring compression: 4mm, Maksimum spring compression: 5.3mm, Length: 27.3mm, Max. contact resistance:: 30mΩ, Current rating: 5A, Spring compression force: 5N, Blade tip shape: 4-point; corona.
