Produkte > INGUN > GKS-113 217 230 R 5002
GKS-113 217 230 R 5002

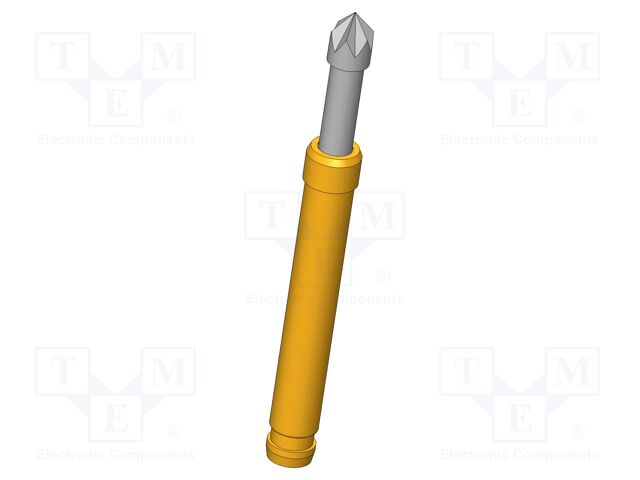

GKS-113 217 230 R 5002 INGUN


pVersion=0046&contRep=ZT&docId=005056AB281E1EDF83A0A223668DC0D6&compId=GKS-113-0074.pdf?ci_sign=c3516be25daf49d1a0bc5abed526ed85bf8a3832 Hersteller: INGUN
Category: Contact Probes
Description: Test needle; Operational spring compression: 4mm; 5A; Ø: 2.3mm
Current rating: 5A
Mounting: push-in
Manufacturer series: GKS-113
Operating temperature: -40...80°C
Contact plating: rhodium plated
Test accessories features: magnetic; self-cleaning
Contact material: steel
Type of test accessories: test needle
Tip diameter: 2.3mm
Operational spring compression: 4mm
Maksimum spring compression: 5.3mm
Length: 27.3mm
Max. contact resistance:: 30mΩ
Spring compression force: 5N
Blade tip shape: pyramid hexagonal
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar

Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details GKS-113 217 230 R 5002 INGUN

Category: Contact Probes, Description: Test needle; Operational spring compression: 4mm; 5A; Ø: 2.3mm, Current rating: 5A, Mounting: push-in, Manufacturer series: GKS-113, Operating temperature: -40...80°C, Contact plating: rhodium plated, Test accessories features: magnetic; self-cleaning, Contact material: steel, Type of test accessories: test needle, Tip diameter: 2.3mm, Operational spring compression: 4mm, Maksimum spring compression: 5.3mm, Length: 27.3mm, Max. contact resistance:: 30mΩ, Spring compression force: 5N, Blade tip shape: pyramid hexagonal, Anzahl je Verpackung: 1 Stücke.
