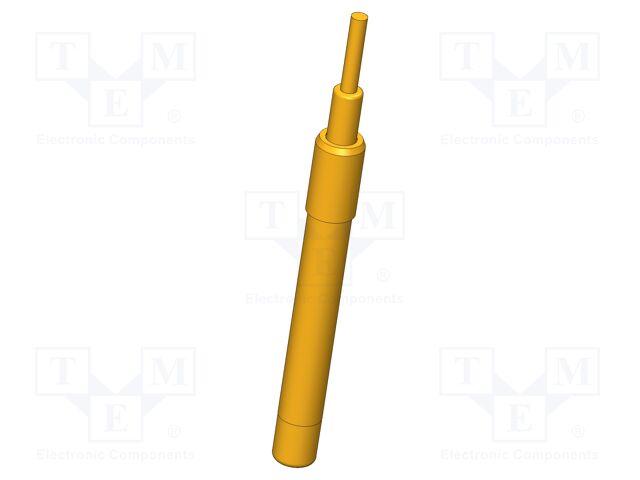

GKS-113 302 100 A 1505 INGUN
Hersteller: INGUNCategory: Contact Probes
Description: Test needle; Operational spring compression: 4mm; 8A; Ø: 1mm; 1.5N
Operating temperature: -40...80°C
Manufacturer series: GKS-113
Current rating: 8A
Length: 30.3mm
Contact material: CuBe
Blade tip shape: cylinder; flat
Type of test accessories: test needle
Maksimum spring compression: 5.3mm
Operational spring compression: 4mm
Tip diameter: 1mm
Test accessories features: magnetic
Spring compression force: 1.5N
Mounting: push-in
Contact plating: gold-plated
Max. contact resistance:: 30mΩ
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details GKS-113 302 100 A 1505 INGUN
Category: Contact Probes, Description: Test needle; Operational spring compression: 4mm; 8A; Ø: 1mm; 1.5N, Operating temperature: -40...80°C, Manufacturer series: GKS-113, Current rating: 8A, Length: 30.3mm, Contact material: CuBe, Blade tip shape: cylinder; flat, Type of test accessories: test needle, Maksimum spring compression: 5.3mm, Operational spring compression: 4mm, Tip diameter: 1mm, Test accessories features: magnetic, Spring compression force: 1.5N, Mounting: push-in, Contact plating: gold-plated, Max. contact resistance:: 30mΩ, Anzahl je Verpackung: 1 Stücke.
