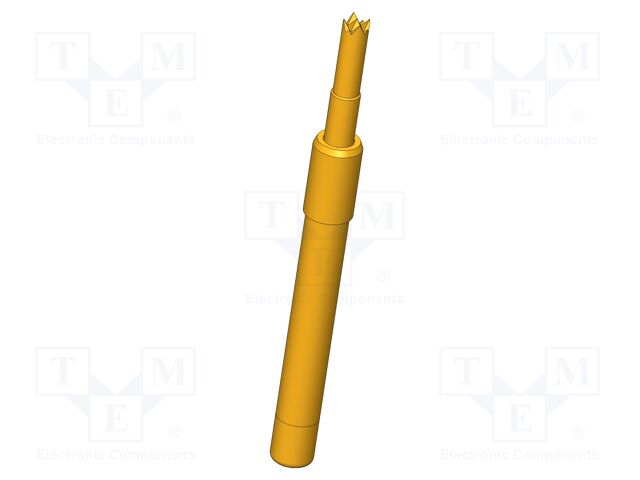

GKS-113 306 160 A 0605 INGUN
Hersteller: INGUNCategory: Contact Probes
Description: Test needle; Operational spring compression: 4mm; 5A; Ø: 1.6mm
Manufacturer series: GKS-113
Contact material: CuBe
Blade tip shape: serrated
Contact plating: gold-plated
Test accessories features: magnetic
Mounting: push-in
Type of test accessories: test needle
Operating temperature: -40...80°C
Tip diameter: 1.6mm
Operational spring compression: 4mm
Length: 30.3mm
Maksimum spring compression: 5.3mm
Max. contact resistance:: 30mΩ
Spring compression force: 0.6N
Current rating: 5A
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details GKS-113 306 160 A 0605 INGUN
Category: Contact Probes, Description: Test needle; Operational spring compression: 4mm; 5A; Ø: 1.6mm, Manufacturer series: GKS-113, Contact material: CuBe, Blade tip shape: serrated, Contact plating: gold-plated, Test accessories features: magnetic, Mounting: push-in, Type of test accessories: test needle, Operating temperature: -40...80°C, Tip diameter: 1.6mm, Operational spring compression: 4mm, Length: 30.3mm, Maksimum spring compression: 5.3mm, Max. contact resistance:: 30mΩ, Spring compression force: 0.6N, Current rating: 5A, Anzahl je Verpackung: 1 Stücke.
