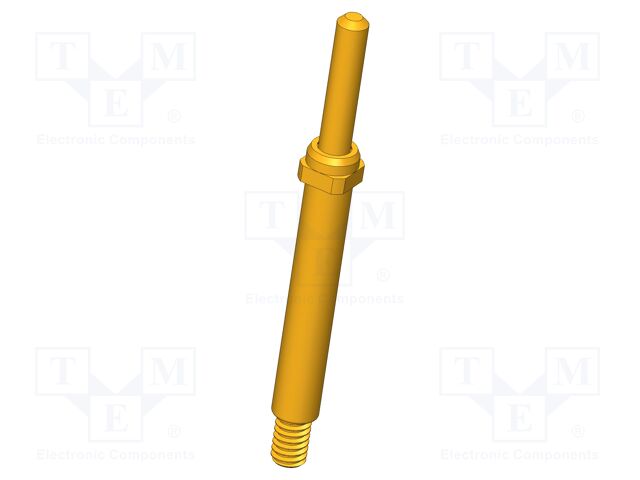

GKS-113 312 180 A 1002 M INGUN
Hersteller: INGUNCategory: Contact Probes
Description: Test needle; Operational spring compression: 4mm; 5A; Ø: 1.8mm
Type of test accessories: test needle
Operational spring compression: 4mm
Maksimum spring compression: 5.3mm
Current rating: 5A
Contact plating: gold-plated
Max. contact resistance:: 30mΩ
Contact material: CuBe
Blade tip shape: flat
Tip diameter: 1.8mm
Manufacturer series: GKS-113
Operating temperature: -40...80°C
Mounting: screw-in
Test accessories features: magnetic
Length: 28.3mm
Spring compression force: 1N
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details GKS-113 312 180 A 1002 M INGUN
Category: Contact Probes, Description: Test needle; Operational spring compression: 4mm; 5A; Ø: 1.8mm, Type of test accessories: test needle, Operational spring compression: 4mm, Maksimum spring compression: 5.3mm, Current rating: 5A, Contact plating: gold-plated, Max. contact resistance:: 30mΩ, Contact material: CuBe, Blade tip shape: flat, Tip diameter: 1.8mm, Manufacturer series: GKS-113, Operating temperature: -40...80°C, Mounting: screw-in, Test accessories features: magnetic, Length: 28.3mm, Spring compression force: 1N, Anzahl je Verpackung: 1 Stücke.
