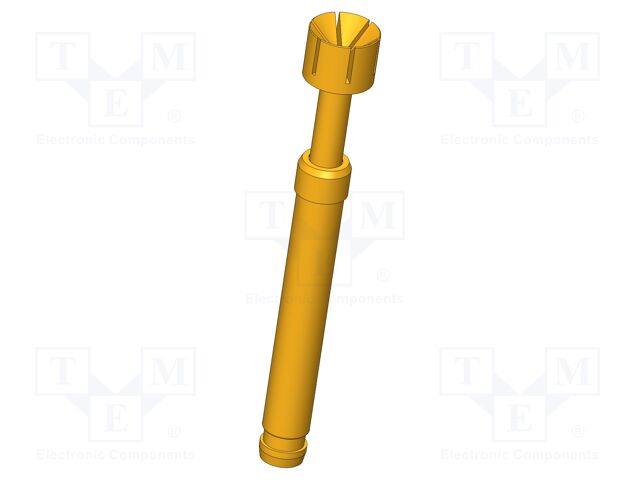

GKS-113 319 400 A 3002 INGUN
Hersteller: INGUNCategory: Contact Probes
Description: Test needle; Operational spring compression: 4mm; 8A; Ø: 4mm; 3N
Type of test accessories: test needle
Operational spring compression: 4mm
Maksimum spring compression: 5.3mm
Current rating: 8A
Contact plating: gold-plated
Contact material: CuBe
Blade tip shape: cone; inverted
Tip diameter: 4mm
Manufacturer series: GKS-113
Operating temperature: -40...80°C
Mounting: push-in
Test accessories features: magnetic; self-cleaning
Length: 27.3mm
Spring compression force: 3N
Max. contact resistance:: 30mΩ
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details GKS-113 319 400 A 3002 INGUN
Category: Contact Probes, Description: Test needle; Operational spring compression: 4mm; 8A; Ø: 4mm; 3N, Type of test accessories: test needle, Operational spring compression: 4mm, Maksimum spring compression: 5.3mm, Current rating: 8A, Contact plating: gold-plated, Contact material: CuBe, Blade tip shape: cone; inverted, Tip diameter: 4mm, Manufacturer series: GKS-113, Operating temperature: -40...80°C, Mounting: push-in, Test accessories features: magnetic; self-cleaning, Length: 27.3mm, Spring compression force: 3N, Max. contact resistance:: 30mΩ, Anzahl je Verpackung: 1 Stücke.
