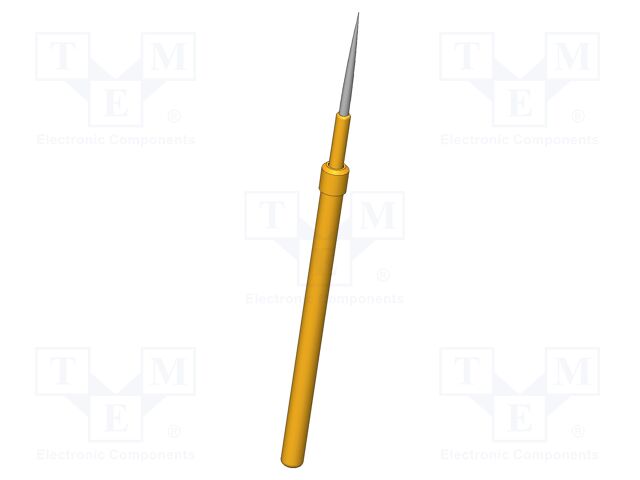

GKS-412 209 070 N 5002 INGUN
Hersteller: INGUN
Category: Contact Probes
Description: Test needle; Spring compression: 8mm; 9.8mm; 5A; steel; Ø: 0.7mm
Blade tip shape: flexible; needle
Mounting: push-in
Manufacturer series: GKS-412
Test accessories features: magnetic; self-cleaning
Contact plating: nickel plated
Contact material: steel
Type of test accessories: test needle
Operating temperature: -40...80°C
Tip diameter: 0.7mm
Flange height: 2mm
Operational spring compression: 8mm
Maksimum spring compression: 9.8mm
Length: 37.8mm
Max. contact resistance:: 20mΩ
Spring compression force: 5N
Current rating: 5A
Category: Contact Probes
Description: Test needle; Spring compression: 8mm; 9.8mm; 5A; steel; Ø: 0.7mm
Blade tip shape: flexible; needle
Mounting: push-in
Manufacturer series: GKS-412
Test accessories features: magnetic; self-cleaning
Contact plating: nickel plated
Contact material: steel
Type of test accessories: test needle
Operating temperature: -40...80°C
Tip diameter: 0.7mm
Flange height: 2mm
Operational spring compression: 8mm
Maksimum spring compression: 9.8mm
Length: 37.8mm
Max. contact resistance:: 20mΩ
Spring compression force: 5N
Current rating: 5A
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details GKS-412 209 070 N 5002 INGUN
Category: Contact Probes, Description: Test needle; Spring compression: 8mm; 9.8mm; 5A; steel; Ø: 0.7mm, Blade tip shape: flexible; needle, Mounting: push-in, Manufacturer series: GKS-412, Test accessories features: magnetic; self-cleaning, Contact plating: nickel plated, Contact material: steel, Type of test accessories: test needle, Operating temperature: -40...80°C, Tip diameter: 0.7mm, Flange height: 2mm, Operational spring compression: 8mm, Maksimum spring compression: 9.8mm, Length: 37.8mm, Max. contact resistance:: 20mΩ, Spring compression force: 5N, Current rating: 5A.
