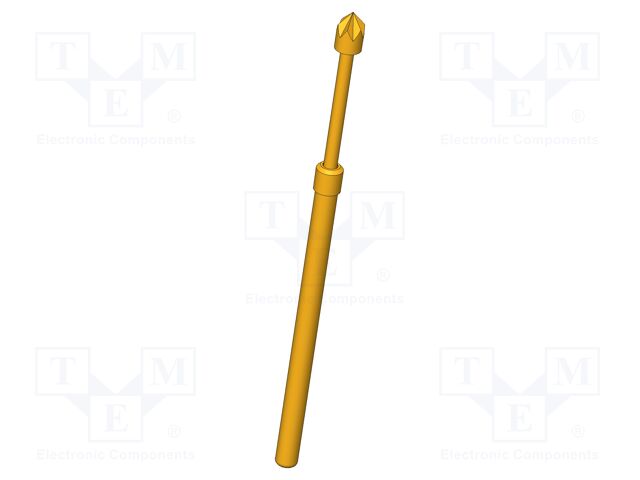

GKS-412 217 200 A 1502 INGUN
Hersteller: INGUN
Category: Contact Probes
Description: Test needle; Operational spring compression: 8mm; 5A; Ø: 2mm; 1.5N
Type of test accessories: test needle
Current rating: 5A
Contact material: steel
Contact plating: gold-plated
Test accessories features: magnetic; self-cleaning
Mounting: push-in
Operating temperature: -40...80°C
Tip diameter: 2mm
Flange height: 2mm
Operational spring compression: 8mm
Maksimum spring compression: 9.8mm
Length: 37.8mm
Max. contact resistance:: 20mΩ
Spring compression force: 1.5N
Blade tip shape: pyramid hexagonal
Manufacturer series: GKS-412
Anzahl je Verpackung: 1 Stücke
Category: Contact Probes
Description: Test needle; Operational spring compression: 8mm; 5A; Ø: 2mm; 1.5N
Type of test accessories: test needle
Current rating: 5A
Contact material: steel
Contact plating: gold-plated
Test accessories features: magnetic; self-cleaning
Mounting: push-in
Operating temperature: -40...80°C
Tip diameter: 2mm
Flange height: 2mm
Operational spring compression: 8mm
Maksimum spring compression: 9.8mm
Length: 37.8mm
Max. contact resistance:: 20mΩ
Spring compression force: 1.5N
Blade tip shape: pyramid hexagonal
Manufacturer series: GKS-412
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details GKS-412 217 200 A 1502 INGUN
Category: Contact Probes, Description: Test needle; Operational spring compression: 8mm; 5A; Ø: 2mm; 1.5N, Type of test accessories: test needle, Current rating: 5A, Contact material: steel, Contact plating: gold-plated, Test accessories features: magnetic; self-cleaning, Mounting: push-in, Operating temperature: -40...80°C, Tip diameter: 2mm, Flange height: 2mm, Operational spring compression: 8mm, Maksimum spring compression: 9.8mm, Length: 37.8mm, Max. contact resistance:: 20mΩ, Spring compression force: 1.5N, Blade tip shape: pyramid hexagonal, Manufacturer series: GKS-412, Anzahl je Verpackung: 1 Stücke.
