Produkte > INGUN > GKS-967 304 130 A 1001 G
GKS-967 304 130 A 1001 G

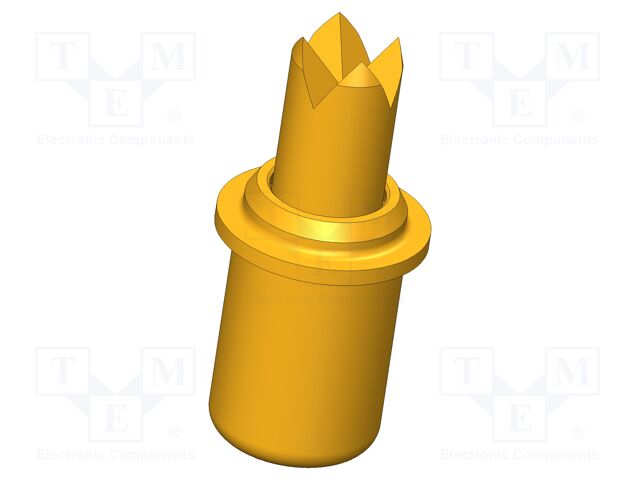

GKS-967 304 130 A 1001 G INGUN


pVersion=0046&contRep=ZT&docId=005056AB281E1EDF83A0C28E902840D6&compId=GKS-967-0036.pdf?ci_sign=1fa39c7709412a78cf42cbea4f300754122bb624 Hersteller: INGUN
Category: Contact Probes
Description: Test needle; Operational spring compression: 1mm; 5A; Ø: 1.3mm
Contact plating: gold-plated
Type of test accessories: test needle
Maksimum spring compression: 1.2mm
Operational spring compression: 1mm
Tip diameter: 1.3mm
Test accessories features: magnetic
Manufacturer series: GKS-967
Spring compression force: 1N
Max. contact resistance:: 100mΩ
Mounting: push-in
Operating temperature: -100...200°C
Current rating: 5A
Length: 5.3mm
Contact material: CuBe
Blade tip shape: 4-point; corona
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar

Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details GKS-967 304 130 A 1001 G INGUN

Category: Contact Probes, Description: Test needle; Operational spring compression: 1mm; 5A; Ø: 1.3mm, Contact plating: gold-plated, Type of test accessories: test needle, Maksimum spring compression: 1.2mm, Operational spring compression: 1mm, Tip diameter: 1.3mm, Test accessories features: magnetic, Manufacturer series: GKS-967, Spring compression force: 1N, Max. contact resistance:: 100mΩ, Mounting: push-in, Operating temperature: -100...200°C, Current rating: 5A, Length: 5.3mm, Contact material: CuBe, Blade tip shape: 4-point; corona, Anzahl je Verpackung: 1 Stücke.
