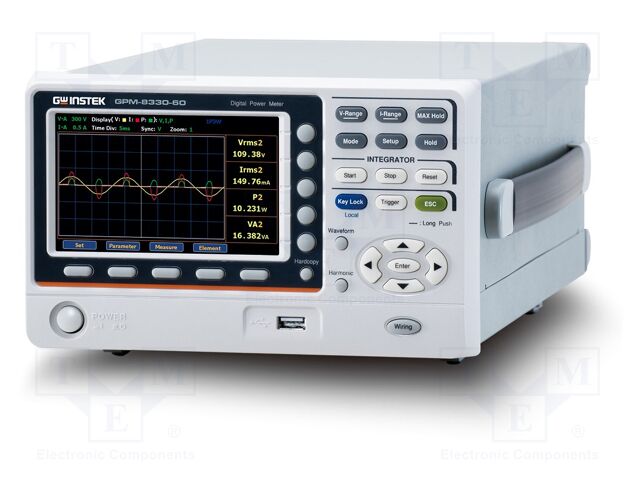

GPM-8330-60 GW INSTEK
Hersteller: GW INSTEK
Category: Power Meters and Analyzers
Description: Meter: power; LCD TFT 5"; True RMS; 60A; 1kV; 100mHz÷100kHz; 35VA
Kind of display used: LCD TFT 5"
Supply voltage: 100...240V AC
Power consumption: 35VA
Interface: LAN; RS232C; USB device; USB Host
Number of channels: 3
Maximum current: 60A
Conform to the norm: CAT II 600V
Max. voltage: 1kV
Dimensions: 220x132x402.5mm
Related items: GCP-300; GPM-DA12; GRA-452; GTL-209; GTL-212A; GTL-214; GTL-232; GTL-246; GTL-258
Standard equipment: cable GTL-209 x3; cable GTL-212A x3; mains cable; user's manual
Measuring instrument features: harmonics analyser
Type of meter: power
True effective value measurement: True RMS
Measurement: AC current; active power; AC voltage; apparent power; crest factor; DC current; DC voltage; frequency; peak current; phase angle θ; power factor; reactive power; residual voltage; static voltage
Band: 100mHz...100kHz
Category: Power Meters and Analyzers
Description: Meter: power; LCD TFT 5"; True RMS; 60A; 1kV; 100mHz÷100kHz; 35VA
Kind of display used: LCD TFT 5"
Supply voltage: 100...240V AC
Power consumption: 35VA
Interface: LAN; RS232C; USB device; USB Host
Number of channels: 3
Maximum current: 60A
Conform to the norm: CAT II 600V
Max. voltage: 1kV
Dimensions: 220x132x402.5mm
Related items: GCP-300; GPM-DA12; GRA-452; GTL-209; GTL-212A; GTL-214; GTL-232; GTL-246; GTL-258
Standard equipment: cable GTL-209 x3; cable GTL-212A x3; mains cable; user's manual
Measuring instrument features: harmonics analyser
Type of meter: power
True effective value measurement: True RMS
Measurement: AC current; active power; AC voltage; apparent power; crest factor; DC current; DC voltage; frequency; peak current; phase angle θ; power factor; reactive power; residual voltage; static voltage
Band: 100mHz...100kHz
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details GPM-8330-60 GW INSTEK
Category: Power Meters and Analyzers, Description: Meter: power; LCD TFT 5"; True RMS; 60A; 1kV; 100mHz÷100kHz; 35VA, Kind of display used: LCD TFT 5", Supply voltage: 100...240V AC, Power consumption: 35VA, Interface: LAN; RS232C; USB device; USB Host, Number of channels: 3, Maximum current: 60A, Conform to the norm: CAT II 600V, Max. voltage: 1kV, Dimensions: 220x132x402.5mm, Related items: GCP-300; GPM-DA12; GRA-452; GTL-209; GTL-212A; GTL-214; GTL-232; GTL-246; GTL-258, Standard equipment: cable GTL-209 x3; cable GTL-212A x3; mains cable; user's manual, Measuring instrument features: harmonics analyser, Type of meter: power, True effective value measurement: True RMS, Measurement: AC current; active power; AC voltage; apparent power; crest factor; DC current; DC voltage; frequency; peak current; phase angle θ; power factor; reactive power; residual voltage; static voltage, Band: 100mHz...100kHz.
