Produkte > ONPOW > GQ12-AF-10/J/A

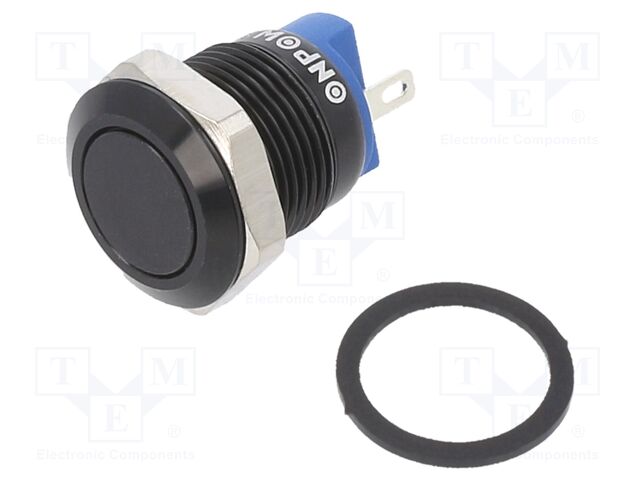

GQ12-AF-10/J/A

GQ12-AF-10/J/A ONPOW

ONPOW GQ12-A.pdf
Hersteller: ONPOW
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST-NO; 2A/36VDC; IP65; OFF-(ON)
Mounting hole dimensions: Ø12mm
IP rating: IP65
Leads: for soldering
Body material: aluminium
Body colour: black
Operating temperature: -25...55°C
Switching method: OFF-(ON)
Max. contact resistance:: 50mΩ
Ring shape: rounded
Electrical life: 200000 cycles
Number of positions: 2
Type of switch: vandal resistant
Mechanical durability: 1000000 cycles
DC contacts rating @R: 2A / 36V DC
Related items: M12-12F
Test voltage: 1.5kV
Button shape: round
Contacts configuration: SPST-NO
Stable positions number: 1
Operating Force: 3.5N
auf Bestellung 372 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details GQ12-AF-10/J/A ONPOW

Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; SPST-NO; 2A/36VDC; IP65; OFF-(ON), Mounting hole dimensions: Ø12mm, IP rating: IP65, Leads: for soldering, Body material: aluminium, Body colour: black, Operating temperature: -25...55°C, Switching method: OFF-(ON), Max. contact resistance:: 50mΩ, Ring shape: rounded, Electrical life: 200000 cycles, Number of positions: 2, Type of switch: vandal resistant, Mechanical durability: 1000000 cycles, DC contacts rating @R: 2A / 36V DC, Related items: M12-12F, Test voltage: 1.5kV, Button shape: round, Contacts configuration: SPST-NO, Stable positions number: 1, Operating Force: 3.5N.
