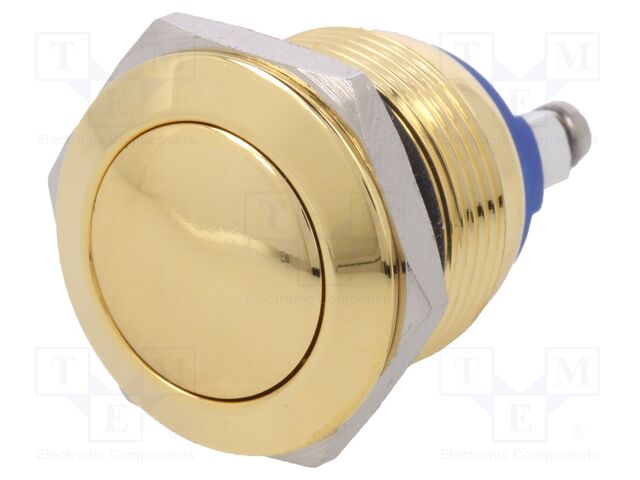

GQ19B-10/G

GQ19B-10/G ONPOW

pVersion=0046&contRep=ZT&docId=005056AB90B41EDAAED9298F235AC0C7&compId=GQ19B-10%20(cxd).pdf?ci_sign=814464a9ec05f496558fdc2e415c39501584c988 Hersteller: ONPOW
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST-NO; 0.5A/220VAC; 2A/36VDC
Type of switch: vandal resistant
Number of positions: 2
Stable positions number: 1
Contacts configuration: SPST-NO
AC contacts rating @R: 0.5A / 220V AC
DC contacts rating @R: 2A / 36V DC
IP rating: IP65
Switching method: OFF-(ON)
Illumination: none
Leads: screw terminals
Electrical life: 200000 cycles
Operating Force: 4N
Mechanical durability: 1000000 cycles
Button shape: convex
Mounting hole diameter: Ø19mm
Body colour: gold
Body material: stainless steel
Ring shape: rounded
Operating temperature: -20...55°C
auf Bestellung 14 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
13+5.59 EUR
14+5.11 EUR
Mindestbestellmenge: 13
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details GQ19B-10/G ONPOW

Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; SPST-NO; 0.5A/220VAC; 2A/36VDC, Type of switch: vandal resistant, Number of positions: 2, Stable positions number: 1, Contacts configuration: SPST-NO, AC contacts rating @R: 0.5A / 220V AC, DC contacts rating @R: 2A / 36V DC, IP rating: IP65, Switching method: OFF-(ON), Illumination: none, Leads: screw terminals, Electrical life: 200000 cycles, Operating Force: 4N, Mechanical durability: 1000000 cycles, Button shape: convex, Mounting hole diameter: Ø19mm, Body colour: gold, Body material: stainless steel, Ring shape: rounded, Operating temperature: -20...55°C.
