Produkte > ONPOW > GQ19F-10/A

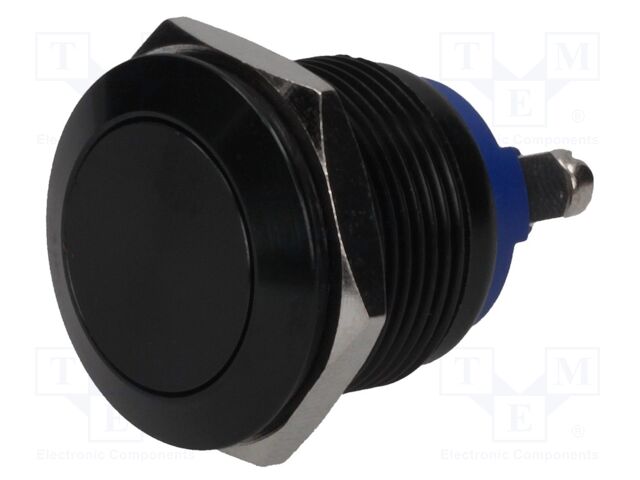

GQ19F-10/A

GQ19F-10/A ONPOW

pVersion=0046&contRep=ZT&docId=005056AB281E1FD098C57D9C4AC480E1&compId=GQ19.pdf?ci_sign=c75143e7985ae5e25c5c5c989bb66b526f062c34 Hersteller: ONPOW
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST-NO; 1A/220VAC; 2A/36VDC
Type of switch: vandal resistant
Number of positions: 2
Stable positions number: 1
Contacts configuration: SPST-NO
AC contacts rating @R: 1A / 220V AC
DC contacts rating @R: 2A / 36V DC
IP rating: IP65
Switching method: OFF-(ON)
Illumination: none
Test voltage: 1.5kV
Leads: screw terminals
Electrical life: 50000 cycles
Max. contact resistance:: 50mΩ
Operating Force: 4N
Mechanical durability: 1000000 cycles
Button shape: flat; round
Mounting hole diameter: Ø19mm
Body colour: black
Body material: aluminium
Ring shape: rounded
Contact material: silver alloy
Mounting: on panel
Key stroke: 1.8mm
Related items: M12-19F
Operating temperature: -20...55°C
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details GQ19F-10/A ONPOW

Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; SPST-NO; 1A/220VAC; 2A/36VDC, Type of switch: vandal resistant, Number of positions: 2, Stable positions number: 1, Contacts configuration: SPST-NO, AC contacts rating @R: 1A / 220V AC, DC contacts rating @R: 2A / 36V DC, IP rating: IP65, Switching method: OFF-(ON), Illumination: none, Test voltage: 1.5kV, Leads: screw terminals, Electrical life: 50000 cycles, Max. contact resistance:: 50mΩ, Operating Force: 4N, Mechanical durability: 1000000 cycles, Button shape: flat; round, Mounting hole diameter: Ø19mm, Body colour: black, Body material: aluminium, Ring shape: rounded, Contact material: silver alloy, Mounting: on panel, Key stroke: 1.8mm, Related items: M12-19F, Operating temperature: -20...55°C, Anzahl je Verpackung: 1 Stücke.
