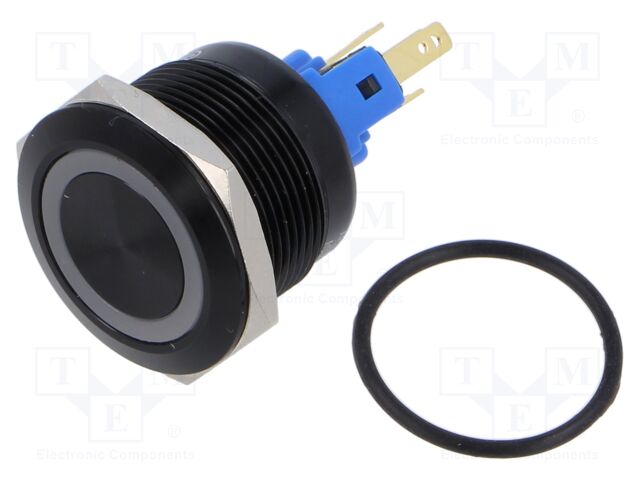

GQ22-11E/B/24/A ONPOW
Hersteller: ONPOWCategory: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST-NO + SPST-NC; 3A/220VAC
Type of switch: vandal resistant
Stable positions number: 1
Contacts configuration: SPST-NO + SPST-NC
Illumination: LED; ring
Illumination voltage: 24V
AC contacts rating @R: 3A / 220V AC
DC contacts rating @R: 5A / 24V DC
IP rating: IP65
Button shape: flat
Number of positions: 2
Mounting hole diameter: Ø22mm
Operating temperature: -25...55°C
Related items: M22-11D
Contact material: silver alloy
Switching method: ON-(ON)
Body colour: black
Backlight colour: blue
Ring shape: rounded
Mechanical durability: 1000000 cycles
Test voltage: 1.5kV
Max. contact resistance:: 50mΩ
Leads: for soldering
Electrical life: 50000 cycles
Body material: aluminium
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details GQ22-11E/B/24/A ONPOW
Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; SPST-NO + SPST-NC; 3A/220VAC, Type of switch: vandal resistant, Stable positions number: 1, Contacts configuration: SPST-NO + SPST-NC, Illumination: LED; ring, Illumination voltage: 24V, AC contacts rating @R: 3A / 220V AC, DC contacts rating @R: 5A / 24V DC, IP rating: IP65, Button shape: flat, Number of positions: 2, Mounting hole diameter: Ø22mm, Operating temperature: -25...55°C, Related items: M22-11D, Contact material: silver alloy, Switching method: ON-(ON), Body colour: black, Backlight colour: blue, Ring shape: rounded, Mechanical durability: 1000000 cycles, Test voltage: 1.5kV, Max. contact resistance:: 50mΩ, Leads: for soldering, Electrical life: 50000 cycles, Body material: aluminium.
