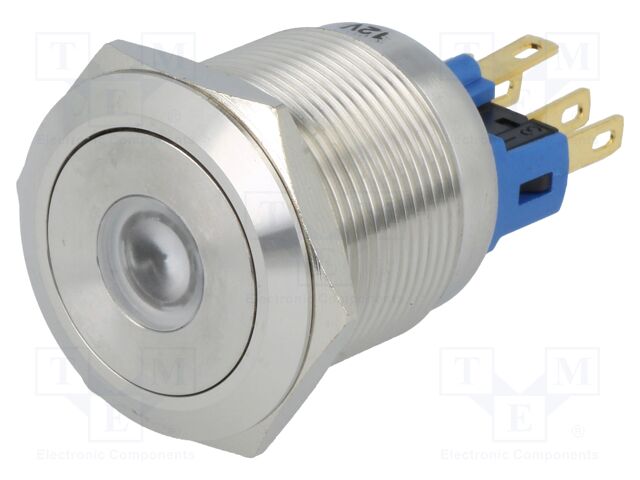

GQ22-11ZD/G/12V ONPOW
Hersteller: ONPOWCategory: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST-NO + SPST-NC; 3A/220VAC
Related items: M22-11D
IP rating: IP65
Mounting hole diameter: Ø22mm
Leads: for soldering
Electrical life: 50000 cycles
Body material: stainless steel
Contact material: silver alloy
Type of switch: vandal resistant
Contacts configuration: SPST-NO + SPST-NC
AC contacts rating @R: 3A / 220V AC
DC contacts rating @R: 5A / 24V DC
Switching method: ON-ON
Stable positions number: 2
Operating Force: 5.5N
Illumination: LED; point
Illumination voltage: 12V
Body colour: silver
Backlight colour: green
Button shape: flat
Number of positions: 2
Ring shape: rounded
Mechanical durability: 1000000 cycles
Test voltage: 1.5kV
Max. contact resistance:: 50mΩ
Operating temperature: -20...55°C
auf Bestellung 3 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Preis |
|---|---|
| 3+ | 23.84 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details GQ22-11ZD/G/12V ONPOW
Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; SPST-NO + SPST-NC; 3A/220VAC, Related items: M22-11D, IP rating: IP65, Mounting hole diameter: Ø22mm, Leads: for soldering, Electrical life: 50000 cycles, Body material: stainless steel, Contact material: silver alloy, Type of switch: vandal resistant, Contacts configuration: SPST-NO + SPST-NC, AC contacts rating @R: 3A / 220V AC, DC contacts rating @R: 5A / 24V DC, Switching method: ON-ON, Stable positions number: 2, Operating Force: 5.5N, Illumination: LED; point, Illumination voltage: 12V, Body colour: silver, Backlight colour: green, Button shape: flat, Number of positions: 2, Ring shape: rounded, Mechanical durability: 1000000 cycles, Test voltage: 1.5kV, Max. contact resistance:: 50mΩ, Operating temperature: -20...55°C.
