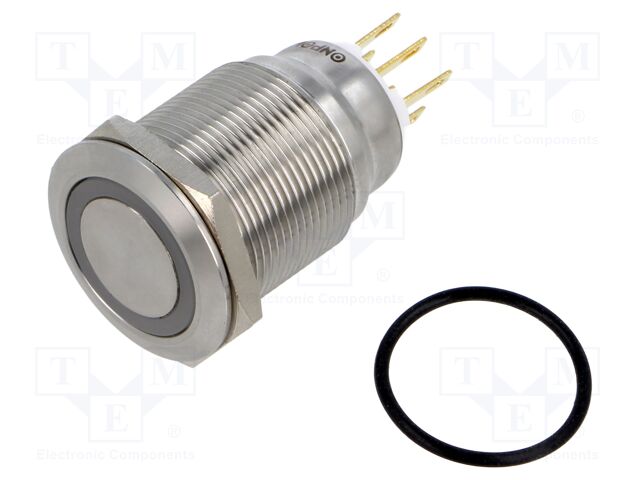

GQ22-L-11ZE/J/R/12V/S ONPOW

Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; SPDT; 3A/220VAC; 5A/24VDC; IP65, Type of switch: vandal resistant, Number of positions: 2, Stable positions number: 2, Contacts configuration: SPDT, AC contacts rating @R: 3A / 220V AC, DC contacts rating @R: 5A / 24V DC, IP rating: IP65, Switching method: ON-ON, Illumination: LED; ring, Test voltage: 1.5kV, Leads: for soldering, Electrical life: 50000 cycles, Max. contact resistance:: 50mΩ, Mechanical durability: 1000000 cycles, Button shape: flat; round, Mounting hole diameter: Ø22mm, Body material: stainless steel, Related items: M12-22F, Operating temperature: -25...55°C, Backlight colour: red, Dimensions: Ø25x41.5mm, Manufacturer series: GQ22-L, Mechanical impact resistance: IK09, Illumination voltage: 12V.
