Suchergebnisse für "gq25-11ze/b/24v/s" : 5

Art der Ansicht :
Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis

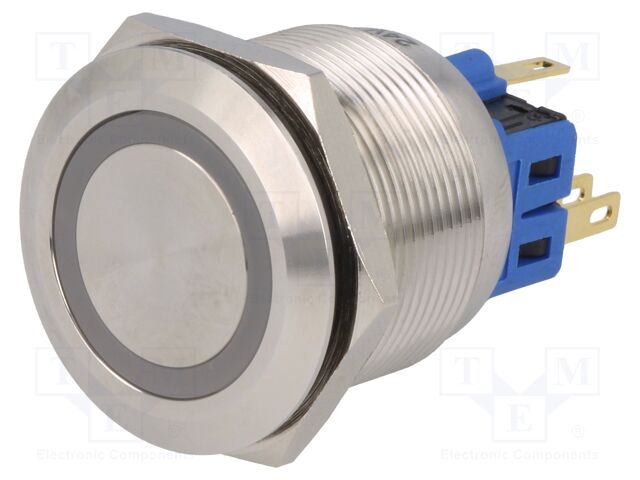

LAS1GQ25-11ZE/B/24V/S LAS1GQ25-11ZE/B/24V/S ONPOW Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPDT; 3A/220VAC; 5A/24VDC; IP65
Type of switch: vandal resistant
Number of positions: 2
Stable positions number: 2
Contacts configuration: SPDT
AC contacts rating @R: 3A / 220V AC
DC contacts rating @R: 5A / 24V DC
IP rating: IP65
Switching method: ON-ON
Illumination: LED; ring
Backlight colour: blue
Illumination voltage: 24V
Test voltage: 1.5kV
Leads: connectors
Electrical life: 50000 cycles
Max. contact resistance:: 50mΩ
Operating Force: 4N
Mechanical durability: 1000000 cycles
Button shape: flat
Mounting hole diameter: Ø25mm
Body colour: silver
Body material: stainless steel
Ring shape: rounded
Contact material: silver alloy
Operating temperature: -25...55°C
Manufacturer series: LAS1GQ22
Leads dimensions: 2.8x0.5mm
Actuator colour: silver
Min. insulation resistance: 1GΩ
auf Bestellung 3 Stücke:
Lieferzeit 14-21 Tag (e)
3+23.84 EUR
Mindestbestellmenge: 3
Im Einkaufswagen  Stück im Wert von  UAH
LAS1GQ25-11ZE/B/24V/S LAS1GQ25-11ZE/B/24V/S ONPOW Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPDT; 3A/220VAC; 5A/24VDC; IP65
Type of switch: vandal resistant
Number of positions: 2
Stable positions number: 2
Contacts configuration: SPDT
AC contacts rating @R: 3A / 220V AC
DC contacts rating @R: 5A / 24V DC
IP rating: IP65
Switching method: ON-ON
Illumination: LED; ring
Backlight colour: blue
Illumination voltage: 24V
Test voltage: 1.5kV
Leads: connectors
Electrical life: 50000 cycles
Max. contact resistance:: 50mΩ
Operating Force: 4N
Mechanical durability: 1000000 cycles
Button shape: flat
Mounting hole diameter: Ø25mm
Body colour: silver
Body material: stainless steel
Ring shape: rounded
Contact material: silver alloy
Operating temperature: -25...55°C
Manufacturer series: LAS1GQ22
Leads dimensions: 2.8x0.5mm
Actuator colour: silver
Min. insulation resistance: 1GΩ
Anzahl je Verpackung: 1 Stücke
auf Bestellung 3 Stücke:
Lieferzeit 7-14 Tag (e)
3+23.84 EUR
5+14.3 EUR
10+9.41 EUR
Mindestbestellmenge: 3
Im Einkaufswagen  Stück im Wert von  UAH
GQ25-11ZE/B/24V/S GQ25-11ZE/B/24V/S ONPOW pVersion=0046&contRep=ZT&docId=005056AB90B41EDAAED92A19E4FA20C7&compId=GQ25-E.pdf?ci_sign=a1b066271693c1a4cff4cc07be07fae04955e74c Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPDT; 3A/220VAC; 5A/24VDC; IP65
Type of switch: vandal resistant
Number of positions: 2
Stable positions number: 2
Contacts configuration: SPDT
AC contacts rating @R: 3A / 220V AC
DC contacts rating @R: 5A / 24V DC
IP rating: IP65
Switching method: ON-ON
Illumination: LED; ring
Backlight colour: blue
Illumination voltage: 24V
Test voltage: 1.5kV
Leads: for soldering
Electrical life: 50000 cycles
Max. contact resistance:: 50mΩ
Operating Force: 5N
Mechanical durability: 1000000 cycles
Button shape: flat
Mounting hole diameter: Ø25mm
Body colour: silver
Body material: stainless steel
Ring shape: rounded
Contact material: silver alloy
Related items: M23-11D
Operating temperature: -20...55°C
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LAS1GQ25-11ZE/B/24V/S
LAS1GQ25-11ZE/B/24V/S
Hersteller: ONPOW
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPDT; 3A/220VAC; 5A/24VDC; IP65
Type of switch: vandal resistant
Number of positions: 2
Stable positions number: 2
Contacts configuration: SPDT
AC contacts rating @R: 3A / 220V AC
DC contacts rating @R: 5A / 24V DC
IP rating: IP65
Switching method: ON-ON
Illumination: LED; ring
Backlight colour: blue
Illumination voltage: 24V
Test voltage: 1.5kV
Leads: connectors
Electrical life: 50000 cycles
Max. contact resistance:: 50mΩ
Operating Force: 4N
Mechanical durability: 1000000 cycles
Button shape: flat
Mounting hole diameter: Ø25mm
Body colour: silver
Body material: stainless steel
Ring shape: rounded
Contact material: silver alloy
Operating temperature: -25...55°C
Manufacturer series: LAS1GQ22
Leads dimensions: 2.8x0.5mm
Actuator colour: silver
Min. insulation resistance: 1GΩ
auf Bestellung 3 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
3+23.84 EUR
Mindestbestellmenge: 3
Im Einkaufswagen  Stück im Wert von  UAH
LAS1GQ25-11ZE/B/24V/S
LAS1GQ25-11ZE/B/24V/S
Hersteller: ONPOW
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPDT; 3A/220VAC; 5A/24VDC; IP65
Type of switch: vandal resistant
Number of positions: 2
Stable positions number: 2
Contacts configuration: SPDT
AC contacts rating @R: 3A / 220V AC
DC contacts rating @R: 5A / 24V DC
IP rating: IP65
Switching method: ON-ON
Illumination: LED; ring
Backlight colour: blue
Illumination voltage: 24V
Test voltage: 1.5kV
Leads: connectors
Electrical life: 50000 cycles
Max. contact resistance:: 50mΩ
Operating Force: 4N
Mechanical durability: 1000000 cycles
Button shape: flat
Mounting hole diameter: Ø25mm
Body colour: silver
Body material: stainless steel
Ring shape: rounded
Contact material: silver alloy
Operating temperature: -25...55°C
Manufacturer series: LAS1GQ22
Leads dimensions: 2.8x0.5mm
Actuator colour: silver
Min. insulation resistance: 1GΩ
Anzahl je Verpackung: 1 Stücke
auf Bestellung 3 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
3+23.84 EUR
5+14.3 EUR
10+9.41 EUR
Mindestbestellmenge: 3
Im Einkaufswagen  Stück im Wert von  UAH
GQ25-11ZE/B/24V/S pVersion=0046&contRep=ZT&docId=005056AB90B41EDAAED92A19E4FA20C7&compId=GQ25-E.pdf?ci_sign=a1b066271693c1a4cff4cc07be07fae04955e74c
GQ25-11ZE/B/24V/S
Hersteller: ONPOW
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPDT; 3A/220VAC; 5A/24VDC; IP65
Type of switch: vandal resistant
Number of positions: 2
Stable positions number: 2
Contacts configuration: SPDT
AC contacts rating @R: 3A / 220V AC
DC contacts rating @R: 5A / 24V DC
IP rating: IP65
Switching method: ON-ON
Illumination: LED; ring
Backlight colour: blue
Illumination voltage: 24V
Test voltage: 1.5kV
Leads: for soldering
Electrical life: 50000 cycles
Max. contact resistance:: 50mΩ
Operating Force: 5N
Mechanical durability: 1000000 cycles
Button shape: flat
Mounting hole diameter: Ø25mm
Body colour: silver
Body material: stainless steel
Ring shape: rounded
Contact material: silver alloy
Related items: M23-11D
Operating temperature: -20...55°C
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
