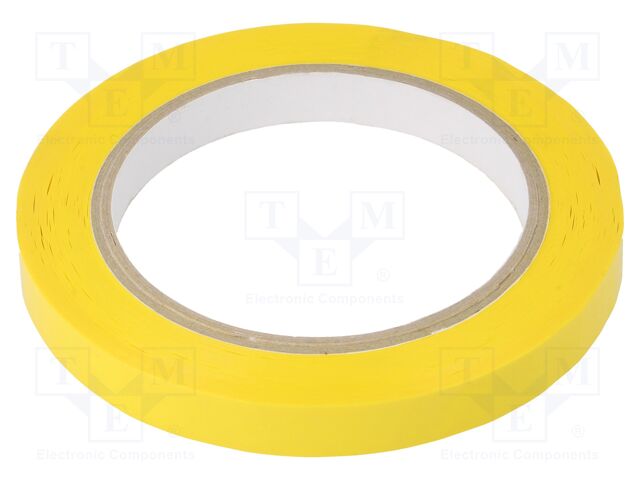

H-OLD P.34 12MM 66M ŻÓŁTA
Hersteller: H-OLDCategory: Insulating tapes
Description: Tape: electrical insulating; W: 12mm; L: 66m; Thk: 60um; yellow; 80%
Type of tape: electrical insulating
Width: 12mm
Length: 66m
Thickness: 60µm
Colour: yellow
Kind of adhesive: acrylic
Tape material: polyester
Operating temperature: 130°C; max. 180°C
Elongation at rupture: 80%
Tensile strength: 40N/cm
Dielectric strength: 4.5kV
Adhesion to steel: 2.5N/cm
Resistance to: electrical insulating varnishes; most of solvents
Tape application: coils; motor windings; transformers
Tape features: good insulating properties
auf Bestellung 11 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Preis ohne MwSt |
|---|---|
| 11+ | 6.51 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details H-OLD P.34 12MM 66M ŻÓŁTA H-OLD
Category: Insulating tapes, Description: Tape: electrical insulating; W: 12mm; L: 66m; Thk: 60um; yellow; 80%, Type of tape: electrical insulating, Width: 12mm, Length: 66m, Thickness: 60µm, Colour: yellow, Kind of adhesive: acrylic, Tape material: polyester, Operating temperature: 130°C; max. 180°C, Elongation at rupture: 80%, Tensile strength: 40N/cm, Dielectric strength: 4.5kV, Adhesion to steel: 2.5N/cm, Resistance to: electrical insulating varnishes; most of solvents, Tape application: coils; motor windings; transformers, Tape features: good insulating properties.
