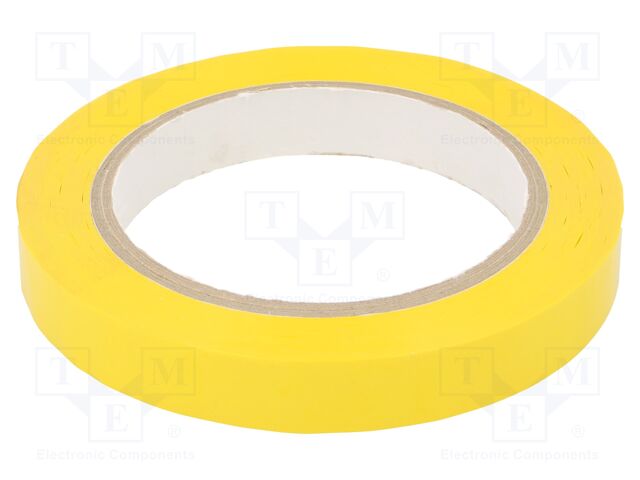

H-OLD P.34 15MM 66M ŻÓŁTA

H-OLD P.34 15MM 66M ŻÓŁTA

pVersion=0046&contRep=ZT&docId=005056AB90B41EDAAFEC363E7F04C0C7&compId=P.34.pdf?ci_sign=8c4d254d5a489189acac5ab35b28e26be14ef421 Hersteller: H-OLD
Category: Insulating tapes
Description: Tape: electrical insulating; W: 15mm; L: 66m; Thk: 0.06mm; yellow
Colour: yellow
Tape application: coils; motor windings; transformers
Type of tape: electrical insulating
Resistance to: electrical insulating varnishes; most of solvents
Tape features: good insulating properties
Tape material: polyester
Operating temperature: 130°C; max. 180°C
Thickness: 60µm
Width: 15mm
Adhesion to steel: 2.5N/cm
Tensile strength: 40N/cm
Length: 66m
Elongation at rupture: 80%
Dielectric strength: 4.5kV
Kind of adhesive: acrylic
auf Bestellung 17 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
11+6.64 EUR
12+6.22 EUR
13+5.81 EUR
Mindestbestellmenge: 11
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details H-OLD P.34 15MM 66M ŻÓŁTA H-OLD

Category: Insulating tapes, Description: Tape: electrical insulating; W: 15mm; L: 66m; Thk: 0.06mm; yellow, Colour: yellow, Tape application: coils; motor windings; transformers, Type of tape: electrical insulating, Resistance to: electrical insulating varnishes; most of solvents, Tape features: good insulating properties, Tape material: polyester, Operating temperature: 130°C; max. 180°C, Thickness: 60µm, Width: 15mm, Adhesion to steel: 2.5N/cm, Tensile strength: 40N/cm, Length: 66m, Elongation at rupture: 80%, Dielectric strength: 4.5kV, Kind of adhesive: acrylic.
