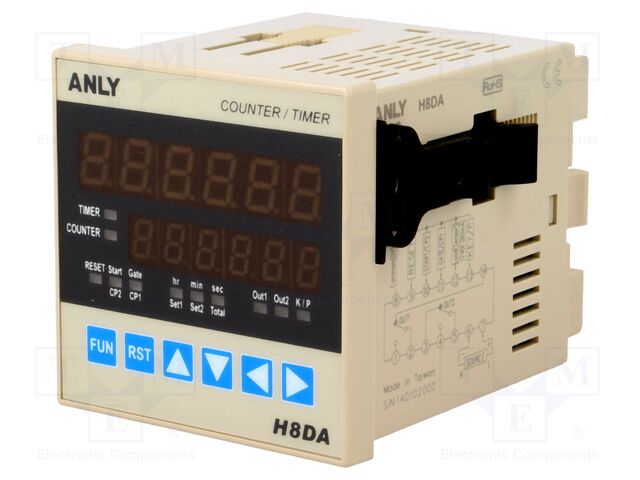

H8DA 12-48V AC/DC

H8DA 12-48V AC/DC ANLY ELECTRONICS


H8DA.pdf H8DA-INS.pdf Hersteller: ANLY ELECTRONICS
Category: Impulse Counters
Description: Counter: electronical; LED x2; time/pulses; SPDT; OUT 1: 250VAC/5A
Type of counter: electronical
Kind of display used: LED x2
Type of counted signal: time/pulses
Counting range: 0,001s...9999h59min / 999999
Resetting method: electrical; manual
Kind of input 1: NPN; PNP
Max IN1 counting frequency: 10kHz
Operating temperature: -10...50°C
Body dimensions: 72x72x72mm
Power supply: external
Mounting hole diameter: 67x67mm
Electrical connection: screw terminals
Mounting: on panel
Counter operation modes: cyclical operation; delayed switching on; ON and OFF delay; ON for the set interval; with the control contact S
Number of operation modes: 11
The additional control inputs: gate; RESET; START
Kind of counter: progressive/reversing; with access lock
Output 2 electrical parameters: 250V AC / 5A
Output 1 electrical parameters: 250V AC / 5A
Kind of output 1: SPDT
Kind of output 2: SPDT
Electrical input 1 parameters: high level: 4,5...30V; low level: 0...2V
Supply voltage: 12...48V AC; 12...48V DC
Anzahl je Verpackung: 1 Stücke
auf Bestellung 18 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis
1+80.92 EUR
