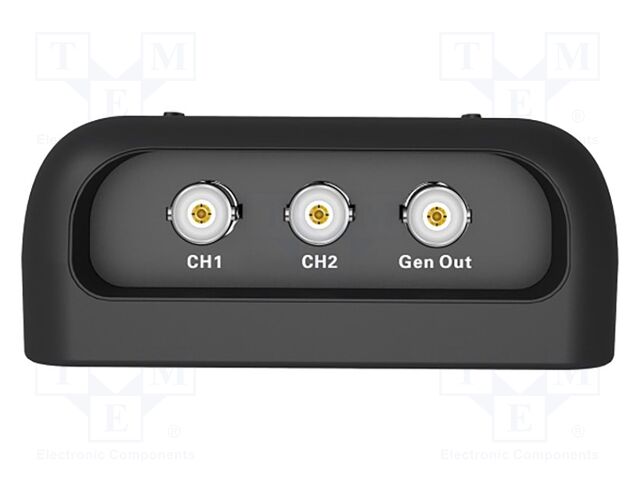

HANTEK2D72

Category: Portable Oscilloscopes, Scopemeters, Description: Portable oscilloscope; 70MHz; 8bit; colour,LCD TFT 2,8"; Ch: 2, Type of oscilloscope: portable oscilloscope, Band: 70MHz, Vertical resolution: 8bit, Kind of display used: colour; LCD TFT 2,8", Number of channels: 2, Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; resistance, Sampling: 250Msps, Memory record length: 6kpts, Max. input voltage: 600V AC; 600V DC, Display resolution: 320x240, Trigger: falling-edge; rising-edge, DC voltage measuring range: 400mV; 4V; 40V; 400V; 600V, DC current measuring range: 40mA; 200mA; 4A; 10A, AC voltage measuring range: 4V; 40V; 400V; 600V, AC current measuring range: 40mA; 400mA; 4A; 10A, Resistance measuring range: 0.4kΩ; 4kΩ; 60kΩ; 400kΩ; 4MΩ; 40MΩ, Capacitance measuring range: 40nF; 400nF; 4µF; 40µF; 100µF, Test: circuit continuity; diodes, Continuity test: acoustic indication, Input coupling: AC, DC, GND, Trigger modes: automatic; normal; single, Trigger source: CH1; CH2, Rise time: ≤5ns, Input sensitivity: 10mV/div, Interface: USB C, Input impedance: 1MΩ/25pF, Power supply: rechargeable battery Li-Ion 18650 x2, Dimensions: 199x98x40mm, Operating temperature: 0...50°C, Measuring instrument features: automatic calibration; automatic power-off; AUTOSET function for setting display parameters (time base, gain); Direct Digital Synthesized (DDS) technology; extended data recording functions; low battery indicator; oscilloscope function with measurement possibility by means of cursors and zoom function; voltmeter function, Standard equipment: BNC cable - crocodile clip x2; etui; oscilloscope probe with 1:1/10:1 divider; test leads set; USB adapter; USB C / USB C cable, Supply voltage: 100...240V AC, Software: download from manufacturers website.
