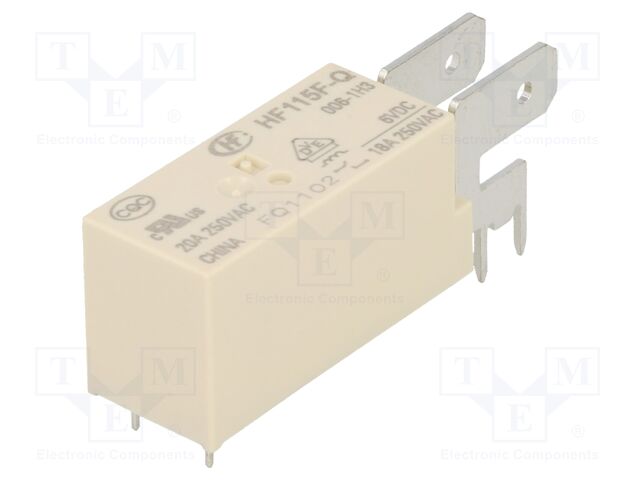

HF115F-Q/006-1H3 HONGFA RELAY
Hersteller: HONGFA RELAYCategory: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 6VDC; 20A; 20A/250VAC; PCB
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 6V DC
Contact current max.: 20A
AC contacts rating @R: 20A / 250V AC
DC contacts rating @R: 20A / 24V DC
Switched voltage: max. 300V DC; max. 440V AC
Relay variant: miniature
Mounting: PCB
Coil resistance: 90Ω
Coil voltage min.: 4.2V DC
Coil voltage max.: 9V DC
Operate time: 15ms
Body dimensions: 45x15.7x12.7mm
Release time: 8ms
Coil power consumption: 400mW
Operating temperature: -40...125°C
Contact resistance: 100mΩ
Contact material: AgNi
Terminal pitch: 5mm
auf Bestellung 178 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Preis ohne MwSt |
|---|---|
| 11+ | 6.76 EUR |
| 19+ | 3.8 EUR |
| 20+ | 3.6 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details HF115F-Q/006-1H3 HONGFA RELAY
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPST-NO; Ucoil: 6VDC; 20A; 20A/250VAC; PCB, Type of relay: electromagnetic, Contacts configuration: SPST-NO, Rated coil voltage: 6V DC, Contact current max.: 20A, AC contacts rating @R: 20A / 250V AC, DC contacts rating @R: 20A / 24V DC, Switched voltage: max. 300V DC; max. 440V AC, Relay variant: miniature, Mounting: PCB, Coil resistance: 90Ω, Coil voltage min.: 4.2V DC, Coil voltage max.: 9V DC, Operate time: 15ms, Body dimensions: 45x15.7x12.7mm, Release time: 8ms, Coil power consumption: 400mW, Operating temperature: -40...125°C, Contact resistance: 100mΩ, Contact material: AgNi, Terminal pitch: 5mm, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote HF115F-Q/006-1H3 nach Preis ab 3.46 EUR bis 10.76 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
HF115F-Q/006-1H3 | Hersteller : HONGFA RELAY |
Category: Miniature Electromagnetic Relays Description: Relay: electromagnetic; SPST-NO; Ucoil: 6VDC; 20A; 20A/250VAC; PCB Type of relay: electromagnetic Contacts configuration: SPST-NO Rated coil voltage: 6V DC Contact current max.: 20A AC contacts rating @R: 20A / 250V AC DC contacts rating @R: 20A / 24V DC Switched voltage: max. 300V DC; max. 440V AC Relay variant: miniature Mounting: PCB Coil resistance: 90Ω Coil voltage min.: 4.2V DC Coil voltage max.: 9V DC Operate time: 15ms Body dimensions: 45x15.7x12.7mm Release time: 8ms Coil power consumption: 400mW Operating temperature: -40...125°C Contact resistance: 100mΩ Contact material: AgNi Terminal pitch: 5mm Anzahl je Verpackung: 1 Stücke |
auf Bestellung 178 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||
| HF115F-Q/006-1H3 | Hersteller : HONGFA | Miniature High Power Relay |
auf Bestellung 178 Stücke: Lieferzeit 14-21 Tag (e) |
|
