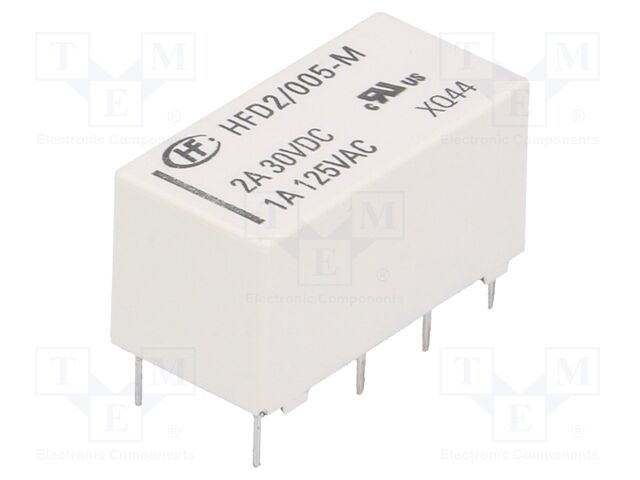

HFD2/005-M HONGFA RELAY
Hersteller: HONGFA RELAY
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 5VDC; 3A; 1A/125VAC; 3A/30VDC
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 5V DC
Contact current max.: 3A
AC contacts rating @R: 1A / 125V AC
DC contacts rating @R: 3A / 30V DC
Switched voltage: max. 220V DC; max. 250V AC
Relay variant: subminiature
Mounting: PCB
Coil resistance: 125Ω
Coil voltage min.: 3.75V DC
Coil voltage max.: 10V DC
Operate time: 4.5ms
Body dimensions: 20.2x10.2x10.6mm
Release time: 3.5ms
Coil power consumption: 200mW
Operating temperature: -40...85°C
Contact resistance: 100mΩ
Contact material: AgPd/Au 0,2μm
Terminal pitch: 5.08mm
Anzahl je Verpackung: 4000 Stücke
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 5VDC; 3A; 1A/125VAC; 3A/30VDC
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 5V DC
Contact current max.: 3A
AC contacts rating @R: 1A / 125V AC
DC contacts rating @R: 3A / 30V DC
Switched voltage: max. 220V DC; max. 250V AC
Relay variant: subminiature
Mounting: PCB
Coil resistance: 125Ω
Coil voltage min.: 3.75V DC
Coil voltage max.: 10V DC
Operate time: 4.5ms
Body dimensions: 20.2x10.2x10.6mm
Release time: 3.5ms
Coil power consumption: 200mW
Operating temperature: -40...85°C
Contact resistance: 100mΩ
Contact material: AgPd/Au 0,2μm
Terminal pitch: 5.08mm
Anzahl je Verpackung: 4000 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details HFD2/005-M HONGFA RELAY
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; DPDT; Ucoil: 5VDC; 3A; 1A/125VAC; 3A/30VDC, Type of relay: electromagnetic, Contacts configuration: DPDT, Rated coil voltage: 5V DC, Contact current max.: 3A, AC contacts rating @R: 1A / 125V AC, DC contacts rating @R: 3A / 30V DC, Switched voltage: max. 220V DC; max. 250V AC, Relay variant: subminiature, Mounting: PCB, Coil resistance: 125Ω, Coil voltage min.: 3.75V DC, Coil voltage max.: 10V DC, Operate time: 4.5ms, Body dimensions: 20.2x10.2x10.6mm, Release time: 3.5ms, Coil power consumption: 200mW, Operating temperature: -40...85°C, Contact resistance: 100mΩ, Contact material: AgPd/Au 0,2μm, Terminal pitch: 5.08mm, Anzahl je Verpackung: 4000 Stücke.
