HFS-810 303 150 A 5342 RF3 M

HFS-810 303 150 A 5342 RF3 M INGUN

pVersion=0046&contRep=ZT&docId=005056AB281E1EDF83A0C7282FFBA0D6&compId=HFS-810-0579.pdf?ci_sign=5741b618e29c3eafd83d646f2dad33f1c237de99 Hersteller: INGUN
Category: Contact Probes

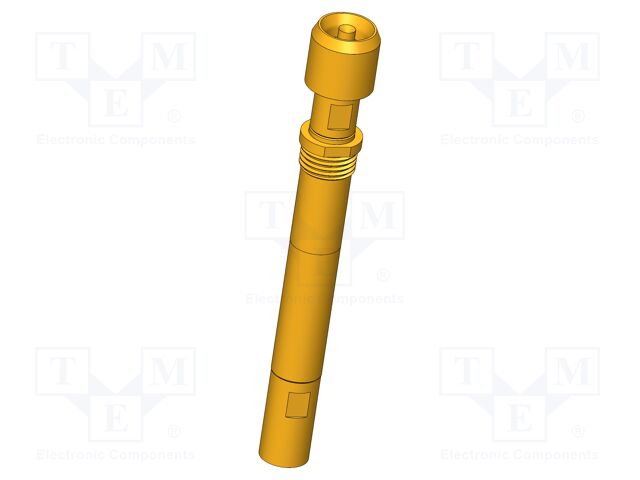

Description: Test needle; Spring compression: 2mm; 3.7mm; 3A; CuBe; gold-plated
Manufacturer series: HFS-810
Test accessories features: outer conductor maximum current: 10A
Mounting: screw-in
Operating temperature: -40...80°C
Tip diameter: 1.5mm
Maksimum spring compression: 3.7mm
Flange diameter: 6.1mm
Length: 43.2mm
Spring compression force: 5.3N
Current rating: 3A
Impedance: 50Ω
Dielectric strength: 1.1kV
Max. frequency: 2GHz
Operational spring compression: 2mm
Blade tip shape: cone; head 42; inverted
Contact material: CuBe
Type of test accessories: test needle
Contact plating: gold-plated
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details HFS-810 303 150 A 5342 RF3 M INGUN

Category: Contact Probes, Description: Test needle; Spring compression: 2mm; 3.7mm; 3A; CuBe; gold-plated, Manufacturer series: HFS-810, Test accessories features: outer conductor maximum current: 10A, Mounting: screw-in, Operating temperature: -40...80°C, Tip diameter: 1.5mm, Maksimum spring compression: 3.7mm, Flange diameter: 6.1mm, Length: 43.2mm, Spring compression force: 5.3N, Current rating: 3A, Impedance: 50Ω, Dielectric strength: 1.1kV, Max. frequency: 2GHz, Operational spring compression: 2mm, Blade tip shape: cone; head 42; inverted, Contact material: CuBe, Type of test accessories: test needle, Contact plating: gold-plated.
