HFS-810 303 150 A 5343 E3 M INGUN
Hersteller: INGUNCategory: Contact Probes

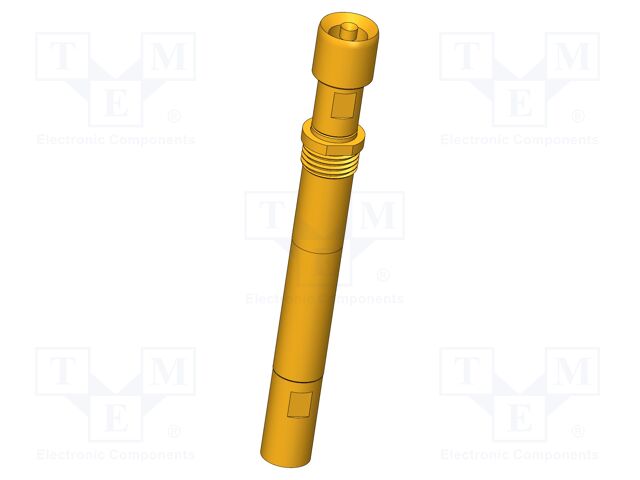

Description: Test needle; Operational spring compression: 2mm; 3A; Ø: 1.5mm
Type of test accessories: test needle
Operating temperature: -40...80°C
Current rating: 3A
Impedance: 50Ω
Flange diameter: 5.35mm
Length: 43mm
Contact material: CuBe
Blade tip shape: cone; head 43; inverted
Maksimum spring compression: 3.7mm
Operational spring compression: 2mm
Tip diameter: 1.5mm
Test accessories features: outer conductor maximum current: 10A
Manufacturer series: HFS-810
Spring compression force: 5.3N
Mounting: screw-in
Contact plating: gold-plated
Max. frequency: 2GHz
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details HFS-810 303 150 A 5343 E3 M INGUN
Category: Contact Probes, Description: Test needle; Operational spring compression: 2mm; 3A; Ø: 1.5mm, Type of test accessories: test needle, Operating temperature: -40...80°C, Current rating: 3A, Impedance: 50Ω, Flange diameter: 5.35mm, Length: 43mm, Contact material: CuBe, Blade tip shape: cone; head 43; inverted, Maksimum spring compression: 3.7mm, Operational spring compression: 2mm, Tip diameter: 1.5mm, Test accessories features: outer conductor maximum current: 10A, Manufacturer series: HFS-810, Spring compression force: 5.3N, Mounting: screw-in, Contact plating: gold-plated, Max. frequency: 2GHz, Anzahl je Verpackung: 1 Stücke.
