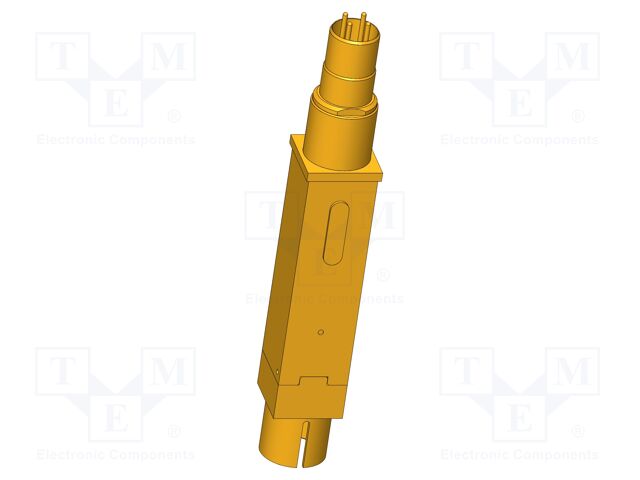

HFS-819 355 051 A 12742 V8 INGUN

Category: Test Probes, Description: Test acces: test needle; -40÷80°C; 3A; Ø: 0.51mm; Contacts: CuBe, Contact material: CuBe, Manufacturer series: HFS-819, Current rating: 3A, Operational spring compression: 2mm, Data transfer rate: 1.5Gbps, Operating temperature: -40...80°C, Impedance: 100Ω, Length: 51.8mm, Test accessories features: outer conductor maximum current: 10A, Tip diameter: 0.51mm, Blade tip shape: head 42; rounded, Spring compression force: 12.7N, Flange diameter: 5.25mm, Type of test accessories: test needle, Dielectric strength: 1.2kV, Contact plating: gold-plated, Maksimum spring compression: 3.7mm, Mounting: push-in.
