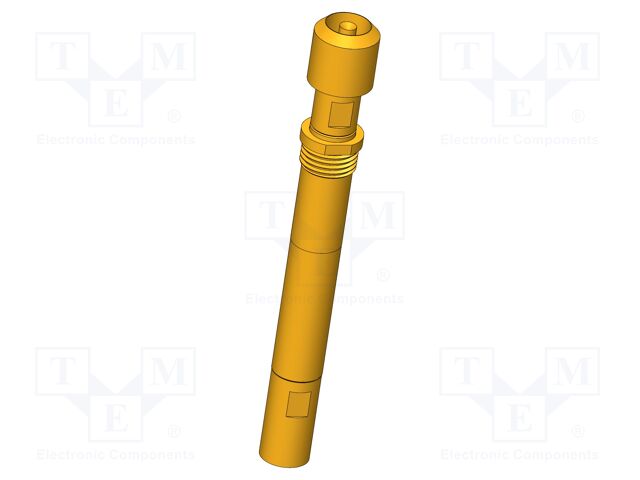

HFS-840 303 150 A 9342 FS1 M INGUN
Hersteller: INGUNCategory: Contact Probes
Description: Test needle; Operational spring compression: 2mm; 3A; Ø: 1.5mm
Manufacturer series: HFS-840
Operating temperature: -40...80°C
Current rating: 3A
Impedance: 50Ω
Flange diameter: 5.8mm
Length: 43.2mm
Contact material: CuBe
Dielectric strength: 1.1kV
Blade tip shape: cone; head 42; inverted
Type of test accessories: test needle
Maksimum spring compression: 3.7mm
Operational spring compression: 2mm
Tip diameter: 1.5mm
Test accessories features: outer conductor maximum current: 10A
Spring compression force: 9.3N
Mounting: screw-in
Contact plating: gold-plated
Max. frequency: 4GHz
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details HFS-840 303 150 A 9342 FS1 M INGUN
Category: Contact Probes, Description: Test needle; Operational spring compression: 2mm; 3A; Ø: 1.5mm, Manufacturer series: HFS-840, Operating temperature: -40...80°C, Current rating: 3A, Impedance: 50Ω, Flange diameter: 5.8mm, Length: 43.2mm, Contact material: CuBe, Dielectric strength: 1.1kV, Blade tip shape: cone; head 42; inverted, Type of test accessories: test needle, Maksimum spring compression: 3.7mm, Operational spring compression: 2mm, Tip diameter: 1.5mm, Test accessories features: outer conductor maximum current: 10A, Spring compression force: 9.3N, Mounting: screw-in, Contact plating: gold-plated, Max. frequency: 4GHz, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote HFS-840 303 150 A 9342 FS1 M
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
|---|---|---|---|---|---|
|
|
HFS-840 303 150 A 9342 FS1 M | Hersteller : INGUN |
Category: Contact Probes Description: Test needle; Operational spring compression: 2mm; 3A; Ø: 1.5mm Manufacturer series: HFS-840 Operating temperature: -40...80°C Current rating: 3A Impedance: 50Ω Flange diameter: 5.8mm Length: 43.2mm Contact material: CuBe Dielectric strength: 1.1kV Blade tip shape: cone; head 42; inverted Type of test accessories: test needle Maksimum spring compression: 3.7mm Operational spring compression: 2mm Tip diameter: 1.5mm Test accessories features: outer conductor maximum current: 10A Spring compression force: 9.3N Mounting: screw-in Contact plating: gold-plated Max. frequency: 4GHz |
Produkt ist nicht verfügbar |
