HFS-856 303 051 A 5543 UFL-H INGUN
Hersteller: INGUNCategory: Contact Probes

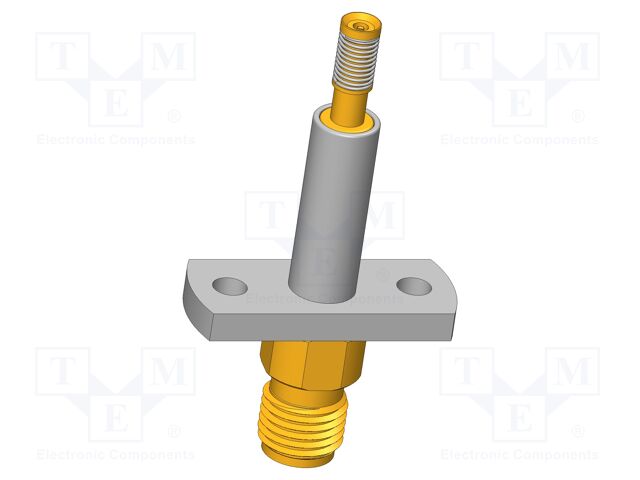

Description: Test needle; Operational spring compression: 1mm; 3A; HFS-856
Current rating: 3A
Maksimum spring compression: 2mm
Operational spring compression: 1mm
Test accessories features: outer conductor maximum current: 3A
Manufacturer series: HFS-856
Spring compression force: 5.5N
Mounting: screw-in
Contact plating: gold-plated
Max. frequency: 12GHz
Operating temperature: -40...80°C
Impedance: 50Ω
Length: 36.2mm
Contact material: CuBe
Blade tip shape: cone; head 43; inverted
Type of test accessories: test needle
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details HFS-856 303 051 A 5543 UFL-H INGUN
Category: Contact Probes, Description: Test needle; Operational spring compression: 1mm; 3A; HFS-856, Current rating: 3A, Maksimum spring compression: 2mm, Operational spring compression: 1mm, Test accessories features: outer conductor maximum current: 3A, Manufacturer series: HFS-856, Spring compression force: 5.5N, Mounting: screw-in, Contact plating: gold-plated, Max. frequency: 12GHz, Operating temperature: -40...80°C, Impedance: 50Ω, Length: 36.2mm, Contact material: CuBe, Blade tip shape: cone; head 43; inverted, Type of test accessories: test needle, Anzahl je Verpackung: 1 Stücke.
