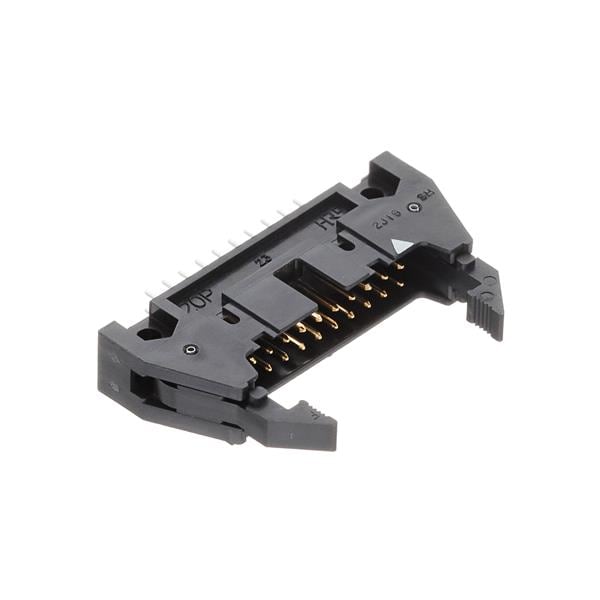

HIF3BAF-20PA-2.54DSA(63) Hirose Connector

Description: CONN HEADER VERT 20POS 2.54MM, Part Status: Active, Contact Finish - Post: Tin, Contact Finish Thickness - Mating: 8.00µin (0.203µm), Contact Finish - Mating: Gold, Pitch - Mating: 0.100" (2.54mm), Insulation Color: Black, Contact Material: Brass, Material Flammability Rating: UL94 V-0, Termination: Solder, Row Spacing - Mating: 0.100" (2.54mm), Insulation Material: Polybutylene Terephthalate (PBT), Shrouding: Shrouded - 4 Wall, Insulation Height: 0.701" (17.80mm), Contact Length - Post: 0.130" (3.30mm), Contact Shape: Square, Number of Positions Loaded: All, Fastening Type: Latch Lock/Eject Hooks, Contact Type: Male Pin, Operating Temperature: -55°C ~ 85°C, Style: Board to Cable/Wire, Number of Rows: 2, Number of Positions: 20, Mounting Type: Through Hole, Current Rating (Amps): Varies by Wire Gauge, Voltage Rating: 200V, Connector Type: Header, Features: Keying Slot, Packaging: Tray.
