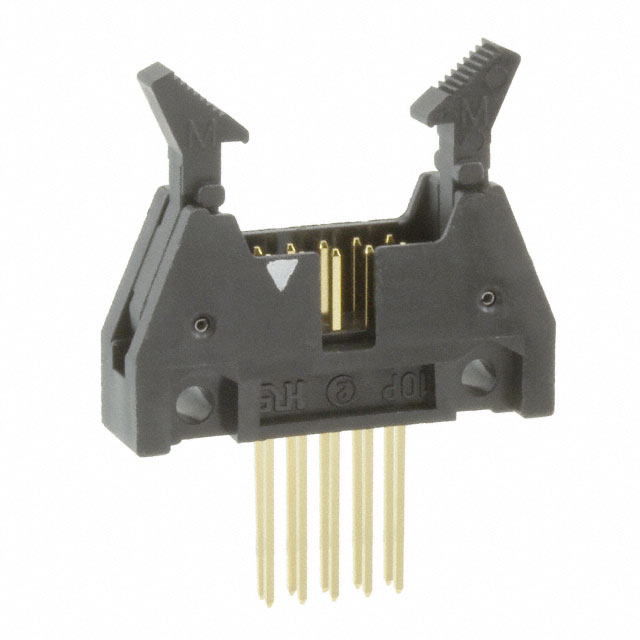

HIF3BD-10P-2.54W Hirose Connector

Description: CONN HEADER VERT 10POS 2.54MM, Contact Length - Mating: 0.236" (6.00mm), Row Spacing - Mating: 0.100" (2.54mm), Insulation Material: Polybutylene Terephthalate (PBT), Overall Contact Length: 1.043" (26.50mm), Shrouding: Shrouded - 4 Wall, Insulation Height: 0.701" (17.80mm), Contact Length - Post: 0.516" (13.10mm), Contact Shape: Square, Contact Finish Thickness - Mating: 8.00µin (0.203µm), Contact Finish - Mating: Gold, Pitch - Mating: 0.100" (2.54mm), Insulation Color: Black, Contact Material: Brass, Material Flammability Rating: UL94 V-0, Termination: Wire Wrap, Number of Positions Loaded: All, Fastening Type: Latch Lock/Eject Hooks, Contact Type: Male Pin, Operating Temperature: -55°C ~ 85°C, Style: Board to Cable/Wire, Number of Rows: 2, Number of Positions: 10, Mounting Type: Through Hole, Current Rating (Amps): 1A, Voltage Rating: 200V, Connector Type: Header, Packaging: Tray.
