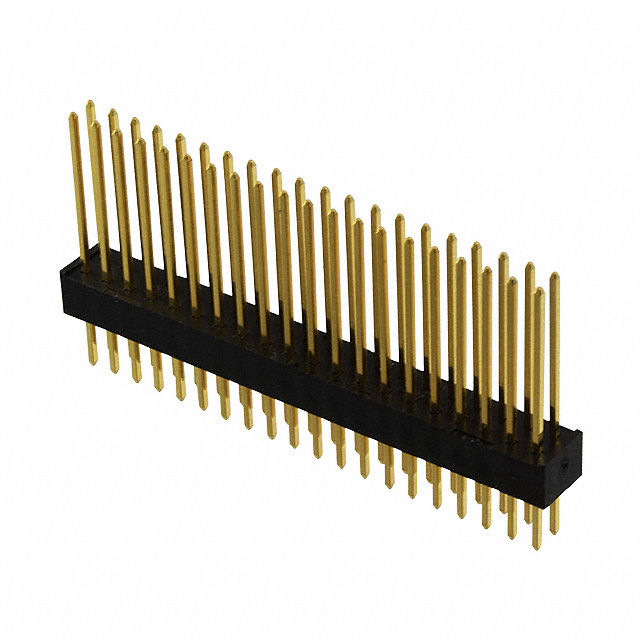

HIF3H-40P-2.54W Hirose Electric Co Ltd

Description: CONN HEADER VERT 40POS 2.54MM, Packaging: Tray, Connector Type: Header, Voltage Rating: 300V, Current Rating (Amps): 3A, Mounting Type: Through Hole, Number of Positions: 40, Number of Rows: 2, Style: Board to Board, Operating Temperature: -55°C ~ 85°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Wire Wrap, Material Flammability Rating: UL94 V-0, Contact Material: Brass, Insulation Color: Black, Pitch - Mating: 0.100" (2.54mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 8.00µin (0.203µm), Contact Finish - Post: Gold, Contact Shape: Square, Contact Length - Post: 0.630" (16.00mm), Insulation Height: 0.177" (4.50mm), Shrouding: Unshrouded, Overall Contact Length: 1.043" (26.50mm), Insulation Material: Polybutylene Terephthalate (PBT), Row Spacing - Mating: 0.100" (2.54mm), Contact Length - Mating: 0.276" (7.00mm).
