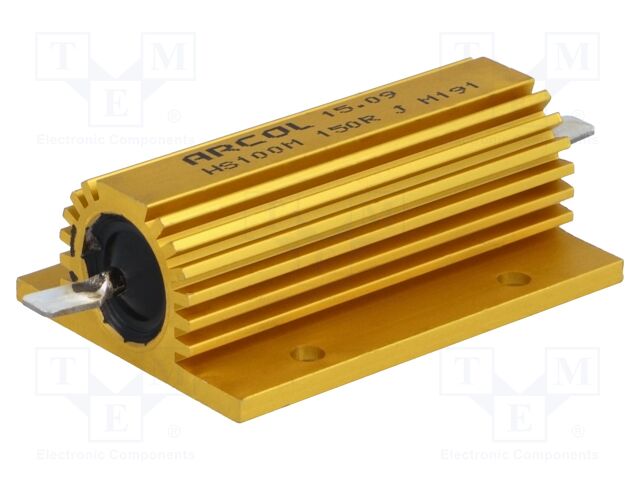

HS100M 150R J M191 ARCOL
Hersteller: ARCOLCategory: Power resistors
Description: Resistor: wire-wound; with heatsink; screw; 150Ω; 100W; ±5%; 6.3mm
Type of resistor: wire-wound
Resistance: 150Ω
Power: 0.1kW
Tolerance: ±5%
Power without heatsink: 30W
Body dimensions: 65.2x47.5x24.1mm
Leads dimensions: 6.3mm
Temperature coefficient: 100ppm/°C
Max. operating voltage: 1.9kV
Mounting holes pitch: 37x35mm
Resistor features: needs additional heatsink
Leads: connectors
Kind of resistor: with heatsink
Mounting: screw
Anzahl je Verpackung: 200 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details HS100M 150R J M191 ARCOL
Category: Power resistors, Description: Resistor: wire-wound; with heatsink; screw; 150Ω; 100W; ±5%; 6.3mm, Type of resistor: wire-wound, Resistance: 150Ω, Power: 0.1kW, Tolerance: ±5%, Power without heatsink: 30W, Body dimensions: 65.2x47.5x24.1mm, Leads dimensions: 6.3mm, Temperature coefficient: 100ppm/°C, Max. operating voltage: 1.9kV, Mounting holes pitch: 37x35mm, Resistor features: needs additional heatsink, Leads: connectors, Kind of resistor: with heatsink, Mounting: screw, Anzahl je Verpackung: 200 Stücke.
Weitere Produktangebote HS100M 150R J M191
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
|---|---|---|---|---|---|
 |
HS100M 150R J M191 | Hersteller : ARCOL |
Description: ALUM HOUSE 100W 150 OHMS 5% Packaging: Box Power (Watts): 100W Tolerance: ±5% Lead Style: Solder Lugs Features: Pulse Withstanding Package / Case: Axial, Box Temperature Coefficient: ±100ppm/°C Size / Dimension: 2.567" L x 1.870" W (65.20mm x 47.50mm) Composition: Wirewound Mounting Feature: Flanges Coating, Housing Type: Aluminum Height - Seated (Max): 0.949" (24.10mm) Resistance: 150 Ohms |
Produkt ist nicht verfügbar |
|
|
|
HS100M 150R J M191 | Hersteller : ARCOL |
Category: Power resistors Description: Resistor: wire-wound; with heatsink; screw; 150Ω; 100W; ±5%; 6.3mm Type of resistor: wire-wound Resistance: 150Ω Power: 0.1kW Tolerance: ±5% Power without heatsink: 30W Body dimensions: 65.2x47.5x24.1mm Leads dimensions: 6.3mm Temperature coefficient: 100ppm/°C Max. operating voltage: 1.9kV Mounting holes pitch: 37x35mm Resistor features: needs additional heatsink Leads: connectors Kind of resistor: with heatsink Mounting: screw |
Produkt ist nicht verfügbar |
