Produkte > ARCOL > HS25 5K J
HS25 5K J

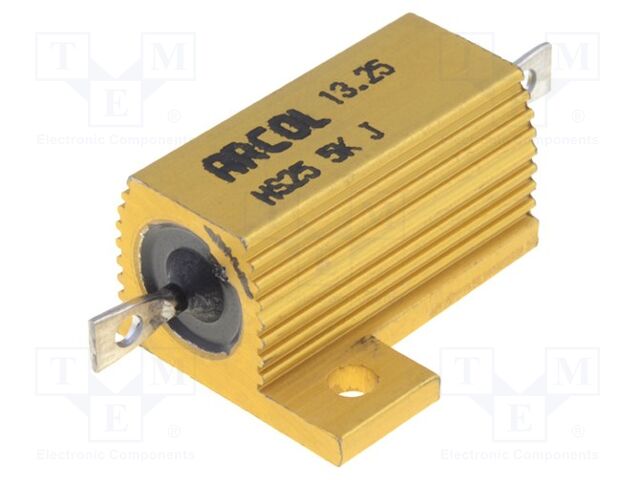

HS25 5K J ARCOL


pVersion=0046&contRep=ZT&docId=E1F1AB87B18E4EF1A303005056AB0C4F&compId=HS-10-05.45.pdf?ci_sign=49c684b57329bd061f52b5aec1747e162fc9a441 Hersteller: ARCOL
Category: Power resistors
Description: Resistor: wire-wound; with heatsink; screw; 5kΩ; 25W; ±5%; 25ppm/°C
Type of resistor: wire-wound
Kind of resistor: with heatsink
Mounting: screw
Resistance: 5kΩ
Power: 25W
Tolerance: ±5%
Max. operating voltage: 550V
Body dimensions: 27.3x28x14.6mm
Resistor features: needs additional heatsink
Temperature coefficient: 25ppm/°C
Leads: for soldering
Mounting holes pitch: 18.3x19.8mm
Power without heatsink: 9W
Anzahl je Verpackung: 1 Stücke
auf Bestellung 45 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis
13+5.58 EUR
20+3.62 EUR
21+3.42 EUR
Mindestbestellmenge: 13
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details HS25 5K J ARCOL

Category: Power resistors, Description: Resistor: wire-wound; with heatsink; screw; 5kΩ; 25W; ±5%; 25ppm/°C, Type of resistor: wire-wound, Kind of resistor: with heatsink, Mounting: screw, Resistance: 5kΩ, Power: 25W, Tolerance: ±5%, Max. operating voltage: 550V, Body dimensions: 27.3x28x14.6mm, Resistor features: needs additional heatsink, Temperature coefficient: 25ppm/°C, Leads: for soldering, Mounting holes pitch: 18.3x19.8mm, Power without heatsink: 9W, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote HS25 5K J nach Preis ab 3.42 EUR bis 5.58 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
HS25 5K J HS25 5K J Hersteller : ARCOL pVersion=0046&contRep=ZT&docId=E1F1AB87B18E4EF1A303005056AB0C4F&compId=HS-10-05.45.pdf?ci_sign=49c684b57329bd061f52b5aec1747e162fc9a441 Category: Power resistors
Description: Resistor: wire-wound; with heatsink; screw; 5kΩ; 25W; ±5%; 25ppm/°C
Type of resistor: wire-wound
Kind of resistor: with heatsink
Mounting: screw
Resistance: 5kΩ
Power: 25W
Tolerance: ±5%
Max. operating voltage: 550V
Body dimensions: 27.3x28x14.6mm
Resistor features: needs additional heatsink
Temperature coefficient: 25ppm/°C
Leads: for soldering
Mounting holes pitch: 18.3x19.8mm
Power without heatsink: 9W
auf Bestellung 45 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
13+5.58 EUR
20+3.62 EUR
21+3.42 EUR
Mindestbestellmenge: 13
Im Einkaufswagen  Stück im Wert von  UAH
HS25 5K J HS25 5K J Hersteller : ARCOL acl_hs10.pdf?r=false Description: ALUM HOUSE 25W 5K OHMS 5%
Packaging: Box
Power (Watts): 25W
Tolerance: ±5%
Lead Style: Solder Lugs
Features: Pulse Withstanding
Package / Case: Axial, Box
Temperature Coefficient: ±25ppm/°C
Size / Dimension: 1.075" L x 1.102" W (27.30mm x 28.00mm)
Composition: Wirewound
Mounting Feature: Flanges
Coating, Housing Type: Aluminum
Height - Seated (Max): 0.583" (14.80mm)
Part Status: Active
Resistance: 5 kOhms
