Produkte > INGUN > HSS-120 305 230 A 3002 M
HSS-120 305 230 A 3002 M

HSS-120 305 230 A 3002 M INGUN

pVersion=0046&contRep=ZT&docId=005056AB281E1EDEA6B7FB06BB8A40D6&compId=HSS-120-0091.pdf?ci_sign=f3ad22fd1bdc81824a03481927526cdc26374847 Hersteller: INGUN
Category: Contact Probes

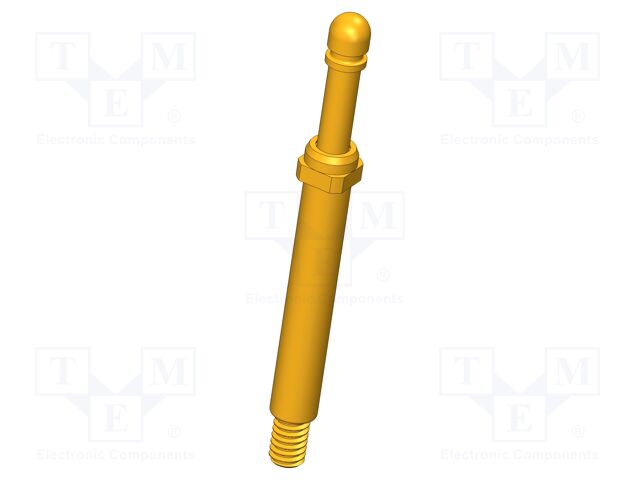

Description: Test needle; Spring compression: 4mm; 5.3mm; 30A; CuBe; Ø: 2.3mm
Mounting: screw-in
Manufacturer series: HSS-120
Contact plating: gold-plated
Test accessories features: magnetic
Type of test accessories: test needle
Operating temperature: -100...200°C
Tip diameter: 2.3mm
Operational spring compression: 4mm
Maksimum spring compression: 5.3mm
Max. contact resistance:: 10mΩ
Length: 28.3mm
Current rating: 30A
Spring compression force: 3N
Contact material: CuBe
Related items: KS-11323
Blade tip shape: round
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details HSS-120 305 230 A 3002 M INGUN

Category: Contact Probes, Description: Test needle; Spring compression: 4mm; 5.3mm; 30A; CuBe; Ø: 2.3mm, Mounting: screw-in, Manufacturer series: HSS-120, Contact plating: gold-plated, Test accessories features: magnetic, Type of test accessories: test needle, Operating temperature: -100...200°C, Tip diameter: 2.3mm, Operational spring compression: 4mm, Maksimum spring compression: 5.3mm, Max. contact resistance:: 10mΩ, Length: 28.3mm, Current rating: 30A, Spring compression force: 3N, Contact material: CuBe, Related items: KS-11323, Blade tip shape: round.
