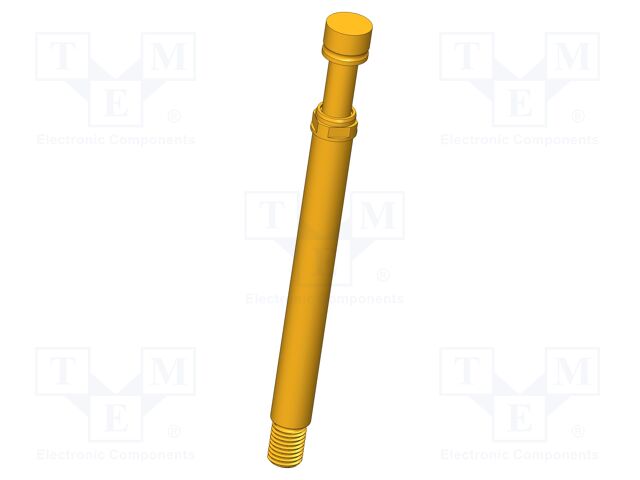

HSS-150 302 400 A 5002 M INGUN
Hersteller: INGUNCategory: Contact Probes
Description: Test needle; Operational spring compression: 4.4mm; 50A; Ø: 4mm
Type of test accessories: test needle
Operational spring compression: 4.4mm
Maksimum spring compression: 5.5mm
Current rating: 50A
Contact plating: gold-plated
Max. contact resistance:: 10mΩ
Contact material: CuBe
Blade tip shape: cylinder; flat
Tip diameter: 4mm
Manufacturer series: HSS-150
Operating temperature: -100...200°C
Mounting: screw-in
Test accessories features: magnetic
Length: 43.1mm
Spring compression force: 5N
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details HSS-150 302 400 A 5002 M INGUN
Category: Contact Probes, Description: Test needle; Operational spring compression: 4.4mm; 50A; Ø: 4mm, Type of test accessories: test needle, Operational spring compression: 4.4mm, Maksimum spring compression: 5.5mm, Current rating: 50A, Contact plating: gold-plated, Max. contact resistance:: 10mΩ, Contact material: CuBe, Blade tip shape: cylinder; flat, Tip diameter: 4mm, Manufacturer series: HSS-150, Operating temperature: -100...200°C, Mounting: screw-in, Test accessories features: magnetic, Length: 43.1mm, Spring compression force: 5N, Anzahl je Verpackung: 1 Stücke.
