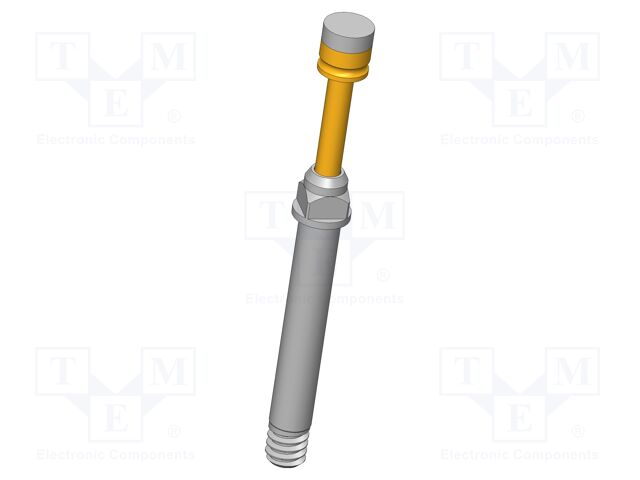

HSS-827 302 200 S 2502 M INGUN
Hersteller: INGUNCategory: Contact Probes
Description: Test needle; Operational spring compression: 3.5mm; 20A; Ø: 2mm
Length: 19.5mm
Operating temperature: -100...200°C
Contact material: CuBe
Blade tip shape: cylinder; flat
Type of test accessories: test needle
Maksimum spring compression: 4.5mm
Operational spring compression: 3.5mm
Tip diameter: 2mm
Test accessories features: magnetic
Manufacturer series: HSS-827
Spring compression force: 2.5N
Mounting: screw-in
Contact plating: silver plated
Max. contact resistance:: 10mΩ
Current rating: 20A
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details HSS-827 302 200 S 2502 M INGUN
Category: Contact Probes, Description: Test needle; Operational spring compression: 3.5mm; 20A; Ø: 2mm, Length: 19.5mm, Operating temperature: -100...200°C, Contact material: CuBe, Blade tip shape: cylinder; flat, Type of test accessories: test needle, Maksimum spring compression: 4.5mm, Operational spring compression: 3.5mm, Tip diameter: 2mm, Test accessories features: magnetic, Manufacturer series: HSS-827, Spring compression force: 2.5N, Mounting: screw-in, Contact plating: silver plated, Max. contact resistance:: 10mΩ, Current rating: 20A, Anzahl je Verpackung: 1 Stücke.
