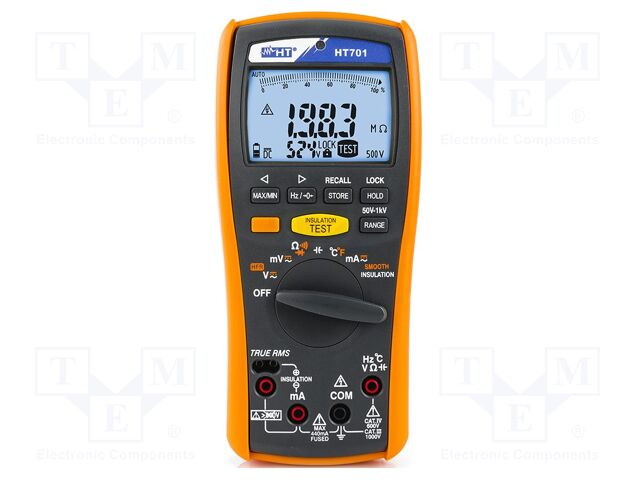

HT701 HT INSTRUMENTS
Hersteller: HT INSTRUMENTS
Category: Portable digital multimeters
Description: Digital multimeter; LCD; 5 digits; VDC: 100mV,1V,10V,100V,1kV
Operating temperature: 0...50°C
Measuring instrument features: automatic display backlit; automatic power-off; auto polarity; autoranging; HOLD function; impact resistant holster; low battery indicator; MIN/MAX/AVG function; REL function
Power supply: battery LR6 AA 1,5V x4
DC voltage measuring accuracy: ±(0.08% + 2 digit)
Standard equipment: adapter for connecting K-type probe to the meter; carrying strap; crocodile clip x2; K-type temperature probe; test leads ( 2pcs.); test probe x1; user's manual
DC current measuring accuracy: ±(0.2% + 2 digit)
Pollution degree: 2
Kind of display used: LCD
Temperature measuring range: -200...1200°C
Continuity test: <30Ω
True effective value measurement: True RMS
DC current measuring range: 100mA; 400mA
DC voltage measuring range: 100mV; 1V; 10V; 100V; 1kV
AC current measuring accuracy: ±(1.5% + 2 digit)
Bargraph: yes
Dimensions: 207x95x52mm
Frequency measuring range: 100Hz; 1kHz; 10kHz; 100kHz
Measurement memory: 100
AC voltage measuring range: 100mV; 1V; 10V; 100V; 1kV
Resistance measuring range: 1kΩ; 10kΩ; 100kΩ; 1MΩ; 10MΩ; 40MΩ
Insulation resistance measuring ranges: 2MΩ; 20MΩ; 200MΩ; 2GΩ; 22GΩ
Temperature measurement accuracy: ±(1% + 1°C)
Frequency measuring accuracy: ±(0.1%+2 digit)
Insulation resistance measuring accuracy: ±(1.5% + 5digit)
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010-1; EN 61557-1; EN 61557-2; UL 61010-1
Illumination: yes
Resistance measuring accuracy: ±(0.5%+2 digit)
AC voltage measuring accuracy: ±(0.9% + 3 digit)
Type of meter: digital multimeter
IP rating: IP20
Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; frequency; insulation resistance; resistance; temperature
Display parameters: 5 digits
AC current measuring range: 100mA; 400mA
Capacitance measuring range: 10nF; 100nF; 1µF; 10µF; 100µF; 1mF; 10mF; 40mF
Test: diodes
Battery/ rechargeable battery: battery LR6 AA 1,5V x4
Capacitance measuring accuracy: ±(1.2%+ 2 digit)
