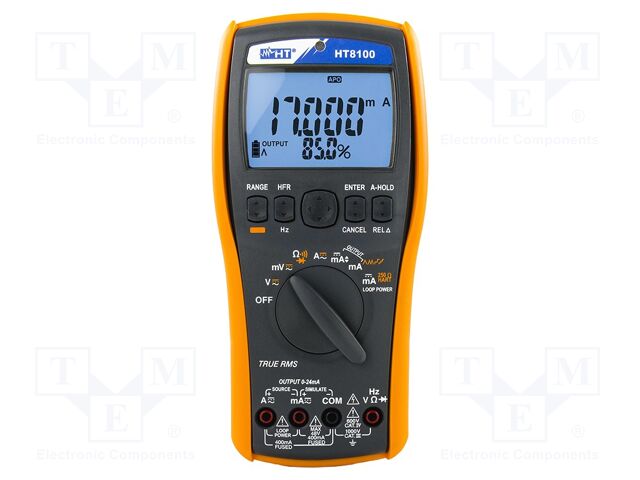

HT8100 HT INSTRUMENTS
Hersteller: HT INSTRUMENTSCategory: Portable digital multimeters
Description: Multimeter calibrator; LCD; VDC: 50mV,500mV,5V,50V,500V,1kV
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010-2-030
Dimensions: 207x95x52mm
Standard equipment: 2 crocodile clips; magnetic catch; test leads
Measuring instrument features: 0% or 100% of signal value (4mA, 20mA) source function; 24V loop supply voltage; automatic and manual step setting; HART range with loop and built-in 250Ω resistor; HOLD function; MIN/MAX/AVG function
Type of meter: multimeter calibrator
Continuity test: acoustic indication; <30Ω
True effective value measurement: True RMS AC
Measurement: AC current; AC voltage; DC current; DC voltage; frequency; resistance
AC current measuring range: 50mA; 1A
Resistance measuring range: 500Ω; 5kΩ; 50kΩ; 500kΩ; 5MΩ; 50MΩ
DC current measuring range: 50mA; 1A
DC voltage measuring range: 50mV; 500mV; 5V; 50V; 500V; 1kV
AC voltage measuring range: 50mV; 500mV; 5V; 50V; 500V; 1kV
Frequency measuring range: 500Hz; 5kHz; 50kHz; 100kHz
Battery/ rechargeable battery: battery LR6 AA 1,5V x4
Frequency measuring accuracy: ±3 digit
AC current measuring accuracy: ±(1% + 20 digit)
DC voltage measuring accuracy: ±(0.05% + 5 digit)
DC current measuring accuracy: ±(0.05% + 5 digit)
AC voltage measuring accuracy: ±(0.5% + 20 digit)
Resistance measuring accuracy: ±(0%+10% range)
Kind of display used: LCD
Power supply: battery LR6 AA 1,5V x4
