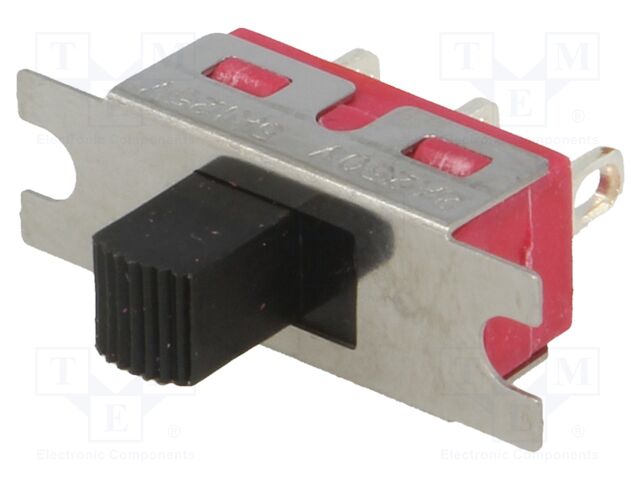

IC1105S1M1QE2

IC1105S1M1QE2 IC SWITCHES


05.pdf Hersteller: IC SWITCHES
Category: Slide Switches
Description: Switch: slide; Pos: 2; SPDT; 2A/250VAC; ON-ON; screw type; -30÷85°C
Mounting: screw type
Operating temperature: -30...85°C
Leads: for soldering
Flammability rating: UL94V-0
Body material: stainless steel
Contact material: copper alloy
Type of switch: slide
Contacts configuration: SPDT
AC contacts rating @R: 2A / 250V AC
Switching method: ON-ON
Stable positions number: 2
Actuator material: polyamide
Knob height: 5.08mm
Number of positions: 2
Contact plating: silver plated
Mechanical durability: 30000 cycles
Max. contact resistance:: 10mΩ
Min. insulation resistance: 1GΩ
Terminal pitch: 4.7mm
Body dimensions: 19.56x6.6x6.35mm
Anzahl je Verpackung: 1 Stücke
auf Bestellung 61 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis
12+6.48 EUR
17+4.22 EUR
18+3.99 EUR
Mindestbestellmenge: 12
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details IC1105S1M1QE2 IC SWITCHES

Category: Slide Switches, Description: Switch: slide; Pos: 2; SPDT; 2A/250VAC; ON-ON; screw type; -30÷85°C, Mounting: screw type, Operating temperature: -30...85°C, Leads: for soldering, Flammability rating: UL94V-0, Body material: stainless steel, Contact material: copper alloy, Type of switch: slide, Contacts configuration: SPDT, AC contacts rating @R: 2A / 250V AC, Switching method: ON-ON, Stable positions number: 2, Actuator material: polyamide, Knob height: 5.08mm, Number of positions: 2, Contact plating: silver plated, Mechanical durability: 30000 cycles, Max. contact resistance:: 10mΩ, Min. insulation resistance: 1GΩ, Terminal pitch: 4.7mm, Body dimensions: 19.56x6.6x6.35mm, Anzahl je Verpackung: 1 Stücke.
