IRG4PC40KDE206P Infineon Technologies

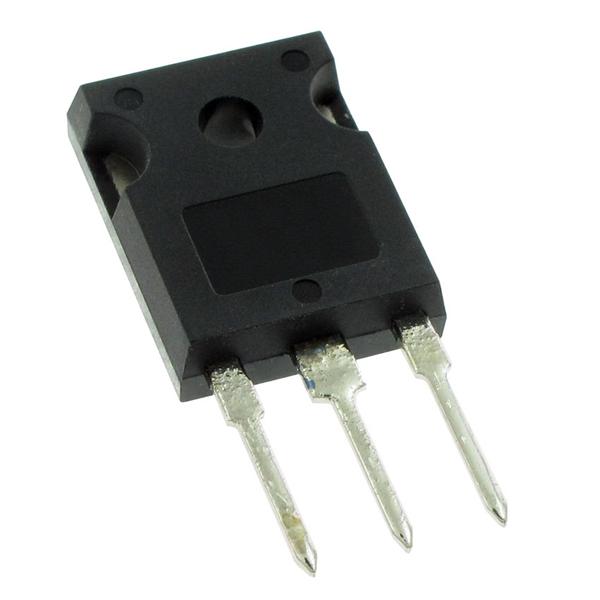

Description: IGBT 600V 42A TO-247AC, Packaging: Tube, Package / Case: TO-247-3, Mounting Type: Through Hole, Operating Temperature: -55°C ~ 150°C (TJ), Input Type: Standard, Reverse Recovery Time (trr): 42 ns, Vce(on) (Max) @ Vge, Ic: 2.6V @ 15V, 25A, Supplier Device Package: TO-247AC, Td (on/off) @ 25°C: 53ns/110ns, Switching Energy: 950µJ (on), 760µJ (off), Test Condition: 480V, 25A, 10Ohm, 15V, Gate Charge: 120 nC, Part Status: Obsolete, Current - Collector (Ic) (Max): 42 A, Voltage - Collector Emitter Breakdown (Max): 600 V, Current - Collector Pulsed (Icm): 84 A, Power - Max: 160 W.
