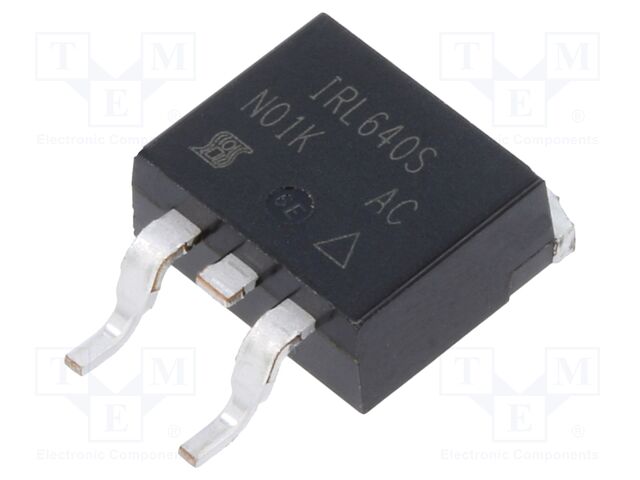

IRL640SPBF

Hersteller: Vishay
Trans MOSFET N-CH 200V 17A 3-Pin(2+Tab) D2PAK

Hersteller: VISHAY
Category: SMD N channel transistors
Description: Transistor: N-MOSFET; unipolar; 200V; 11A; Idm: 68A; 125W
Type of transistor: N-MOSFET
Polarisation: unipolar
Drain-source voltage: 200V
Drain current: 11A
Pulsed drain current: 68A
Power dissipation: 125W
Case: D2PAK; TO263
Gate-source voltage: ±10V
On-state resistance: 0.27Ω
Mounting: SMD
Kind of package: tube
Kind of channel: enhancement
Gate charge: 66nC
Features of semiconductor devices: logic level

Hersteller: Vishay Siliconix
Description: MOSFET N-CH 200V 17A D2PAK
Packaging: Tube
Package / Case: TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 17A (Tc)
Rds On (Max) @ Id, Vgs: 180mOhm @ 10A, 5V
Power Dissipation (Max): 3.1W (Ta), 125W (Tc)
Vgs(th) (Max) @ Id: 2V @ 250µA
Supplier Device Package: TO-263 (D2Pak)
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 4V, 5V
Vgs (Max): ±10V
Drain to Source Voltage (Vdss): 200 V
Gate Charge (Qg) (Max) @ Vgs: 66 nC @ 5 V
Input Capacitance (Ciss) (Max) @ Vds: 1800 pF @ 25 V

Hersteller: Vishay
Trans MOSFET N-CH 200V 17A 3-Pin(2+Tab) D2PAK

Hersteller: VISHAY
Description: VISHAY - IRL640SPBF - Leistungs-MOSFET, n-Kanal, 200 V, 17 A, 0.18 ohm, TO-263 (D2PAK), Oberflächenmontage
tariffCode: 85412900
Transistormontage: Oberflächenmontage
Drain-Source-Spannung Vds: 200V
rohsCompliant: Y-EX
Dauer-Drainstrom Id: 17A
hazardous: false
rohsPhthalatesCompliant: YES
Qualifikation: -
isCanonical: Y
MSL: MSL 1 - unbegrenzt
usEccn: EAR99
Gate-Source-Schwellenspannung, max.: 2V
euEccn: NLR
Verlustleistung: 125W
Bauform - Transistor: TO-263 (D2PAK)
Anzahl der Pins: 3Pin(s)
Produktpalette: -
productTraceability: Yes-Date/Lot Code
Kanaltyp: n-Kanal
Rds(on)-Prüfspannung: 5V
Betriebstemperatur, max.: 150°C
Drain-Source-Durchgangswiderstand: 0.18ohm
SVHC: Lead (25-Jun-2025)
