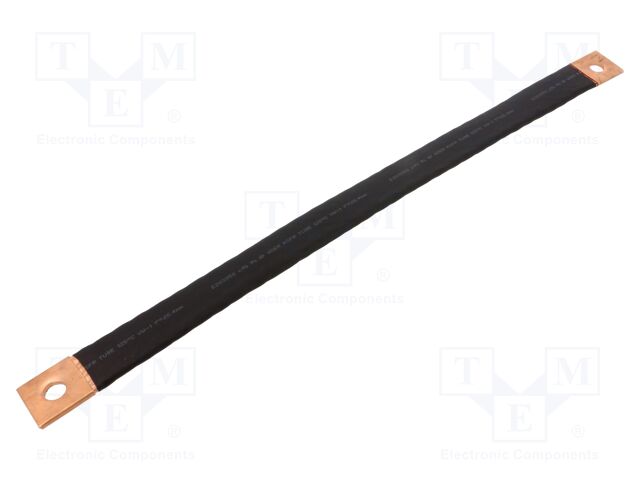

IST-070-500-1313-D CONNECT
Hersteller: CONNECT
Category: Copper Braids and Wires
Description: Braids; insulated earthing tape; W: 35mm; 70mm2; Ø1: 13mm; Ø2: 13mm
Type of wire: braids
Braid structure: copper wires
Kind of braid: insulated earthing tape
Operating temperature: max. 105°C
Wire cross-section: 70mm2
Width: 35mm
Assembly hole 2 diameter: 13mm
Assembly hole 1 diameter: 13mm
Length: 0.5m
Max. current load: 290A
Electrical insulation: 20kV/mm
Trade name: copper strand; earthing braid; earthing braid with pressed contact
Manufacturer series: IST
| Anzahl | Preis |
|---|---|
| 2+ | 59.2 EUR |
| 5+ | 53.28 EUR |
| 10+ | 47.92 EUR |
| 20+ | 42.29 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details IST-070-500-1313-D CONNECT
Category: Copper Braids and Wires, Description: Braids; insulated earthing tape; W: 35mm; 70mm2; Ø1: 13mm; Ø2: 13mm, Type of wire: braids, Braid structure: copper wires, Kind of braid: insulated earthing tape, Operating temperature: max. 105°C, Wire cross-section: 70mm2, Width: 35mm, Assembly hole 2 diameter: 13mm, Assembly hole 1 diameter: 13mm, Length: 0.5m, Max. current load: 290A, Electrical insulation: 20kV/mm, Trade name: copper strand; earthing braid; earthing braid with pressed contact, Manufacturer series: IST.
