auf Bestellung 50 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis ohne MwSt |
|---|---|
| 1+ | 11.7 EUR |
| 10+ | 11.11 EUR |
| 25+ | 10.81 EUR |
| 50+ | 10.52 EUR |
Produktrezensionen
Produktbewertung abgeben

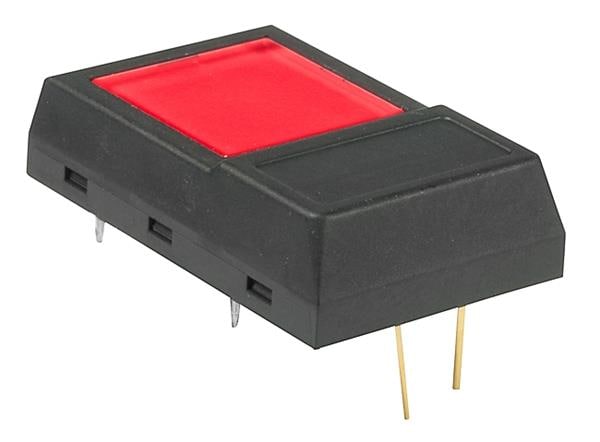

Technische Details JF15AP1CC NKK Switches
Category: Microswitches TACT, Description: Microswitch TACT; SPST-NC; Pos: 2; 0.05A/24VDC; THT; LED; red; 3N, Type of switch: microswitch TACT, Manufacturer series: JF, Operating temperature: -25...70°C, Illumination: LED, Mounting: THT, Leads: for soldering; straight, Contacts configuration: SPST-NC, DC contacts rating @R: 0.05A / 24V DC, Backlight colour: red, Contact plating: silver plated, Body colour: black, Body material: polyamide, Button shape: square, Number of positions: 2, Contact material: brass, Electrical life: 500000 cycles, Poles number: 1, Mechanical durability: 500000 cycles, Number of terminals: 6, Stable positions number: 1, Max. contact resistance:: 50mΩ, Switching method: OFF-(ON), Key stroke: 0.4mm, Body dimensions: 17.7x26.9x7.3mm, Min. insulation resistance: 500MΩ, Kind of material: fiber glass reinforced, Operating Force: 3N.
Weitere Produktangebote JF15AP1CC nach Preis ab 11.48 EUR bis 12.02 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
JF15AP1CC | Hersteller : NKK Switches |
 Description: SWITCH TACTILE SPST-NO 0.05A 24VFeatures: Process Sealed Packaging: Bulk Mounting Type: Through Hole Circuit: SPST-NO Switch Function: Off-Mom Operating Temperature: -25°C ~ 70°C Termination Style: PC Pin Illumination Type, Color: LED, Red Illumination Voltage (Nominal): 1.77 VDC Illumination: Illuminated Contact Rating @ Voltage: 0.05A @ 24VDC Actuator Type: Square Button Operating Force: 300gf Outline: 22.80mm x 17.70mm Actuator Height off PCB, Vertical: 6.70mm Actuator Orientation: Top Actuated Part Status: Last Time Buy |
auf Bestellung 249 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||
| JF15AP1CC | Hersteller : NKK SWITCHES |
Category: Microswitches TACT Description: Microswitch TACT; SPST-NC; Pos: 2; 0.05A/24VDC; THT; LED; red; 3N Type of switch: microswitch TACT Manufacturer series: JF Operating temperature: -25...70°C Illumination: LED Mounting: THT Leads: for soldering; straight Contacts configuration: SPST-NC DC contacts rating @R: 0.05A / 24V DC Backlight colour: red Contact plating: silver plated Body colour: black Body material: polyamide Button shape: square Number of positions: 2 Contact material: brass Electrical life: 500000 cycles Poles number: 1 Mechanical durability: 500000 cycles Number of terminals: 6 Stable positions number: 1 Max. contact resistance:: 50mΩ Switching method: OFF-(ON) Key stroke: 0.4mm Body dimensions: 17.7x26.9x7.3mm Min. insulation resistance: 500MΩ Kind of material: fiber glass reinforced Operating Force: 3N |
Produkt ist nicht verfügbar |
||||||||
| JF15AP1CC | Hersteller : NKK SWITCHES |
Category: Microswitches TACT Description: Microswitch TACT; SPST-NC; Pos: 2; 0.05A/24VDC; THT; LED; red; 3N Type of switch: microswitch TACT Manufacturer series: JF Operating temperature: -25...70°C Illumination: LED Mounting: THT Leads: for soldering; straight Contacts configuration: SPST-NC DC contacts rating @R: 0.05A / 24V DC Backlight colour: red Contact plating: silver plated Body colour: black Body material: polyamide Button shape: square Number of positions: 2 Contact material: brass Electrical life: 500000 cycles Poles number: 1 Mechanical durability: 500000 cycles Number of terminals: 6 Stable positions number: 1 Max. contact resistance:: 50mΩ Switching method: OFF-(ON) Key stroke: 0.4mm Body dimensions: 17.7x26.9x7.3mm Min. insulation resistance: 500MΩ Kind of material: fiber glass reinforced Operating Force: 3N |
Produkt ist nicht verfügbar |
