KEWMATE 2000A
  • KEWMATE 2000A
  • KEWMATE 2000A
  • KEWMATE 2000A

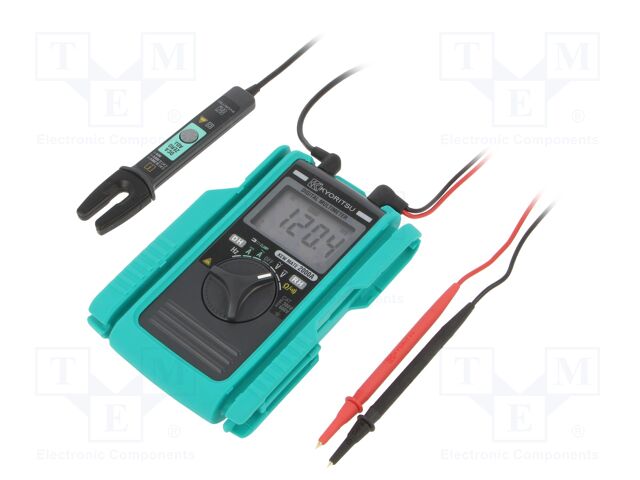

KEWMATE 2000A KYORITSU

pVersion=0046&contRep=ZT&docId=005056AB90B41EDB90A256539A1400C7&compId=KT2000A.pdf?ci_sign=0a3763ccf8b884bd5add7415a7ae6fa478d66f5b Hersteller: KYORITSU
Category: Portable digital multimeters
Description: Digital multimeter; LCD; 3,5 digit (3999); 2,5x/s; 10MΩ/V
Type of meter: digital multimeter
Measuring instrument features: auto and manual ranging; automatic power-off; current clamp adapter; DC - DCA zero adjustment; HOLD function; protection cover; universal
Kind of display used: LCD
Display parameters: 3,5 digit (3999)
AC current measuring range: 100mA...60A
AC current measuring accuracy: ±(2% + 5 digit)
DC voltage measuring range: 0...340mV; 3.4V; 34V; 340V; 600V
DC voltage measuring accuracy: ±(1.5% + 4 digit)
AC voltage measuring range: 0...3.4V; 34V; 340V; 600V
AC voltage measuring accuracy: ±(1.5% + 5 digit)
Resistance measuring range: 100mΩ...340Ω; 3.4Ω; 34kΩ; 340kΩ; 3.4MΩ; 34MΩ
Continuity test: acoustic indication; <30Ω
Weight with battery: 220g
Power supply: battery LR03 AAA 1,5V x2
Measurement: AC current; AC voltage; DC current; DC voltage; frequency; resistance
Conform to the norm: CAT III 300V; EN 61010
Standard equipment: current clamp; fixed test leads
Battery/ rechargeable battery: battery LR03 AAA 1,5V x2
Resistance measuring accuracy: ±(1%+3 digit)@(100mΩ...340kΩ); ±(5%+5 digit)@(3.4MΩ); ±(15%+5 digit)@(34MΩ)
Related items: KEW105811
Input impedance for AC voltage: 10MΩ/V
Sampling: 2,5x/s
Bargraph: 33 segm. 50x/s
Dimensions (W x H x D): 92x27x128mm
DC current measuring range: 100mA...60A
Frequency measuring range: 1...3.4kHz; 10kHz; 34kHz; 340kHz
Frequency measuring accuracy: ±(0.1%+1 digit)
DC current measuring accuracy: ±(2% + 5 digit)
Anzahl je Verpackung: 1 Stücke
auf Bestellung 3 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
1+176.88 EUR
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details KEWMATE 2000A KYORITSU

Category: Portable digital multimeters, Description: Digital multimeter; LCD; 3,5 digit (3999); 2,5x/s; 10MΩ/V, Type of meter: digital multimeter, Measuring instrument features: auto and manual ranging; automatic power-off; current clamp adapter; DC - DCA zero adjustment; HOLD function; protection cover; universal, Kind of display used: LCD, Display parameters: 3,5 digit (3999), AC current measuring range: 100mA...60A, AC current measuring accuracy: ±(2% + 5 digit), DC voltage measuring range: 0...340mV; 3.4V; 34V; 340V; 600V, DC voltage measuring accuracy: ±(1.5% + 4 digit), AC voltage measuring range: 0...3.4V; 34V; 340V; 600V, AC voltage measuring accuracy: ±(1.5% + 5 digit), Resistance measuring range: 100mΩ...340Ω; 3.4Ω; 34kΩ; 340kΩ; 3.4MΩ; 34MΩ, Continuity test: acoustic indication; .
