Produkte > ONPOW > LAS1-AGQ-11D/B/24V

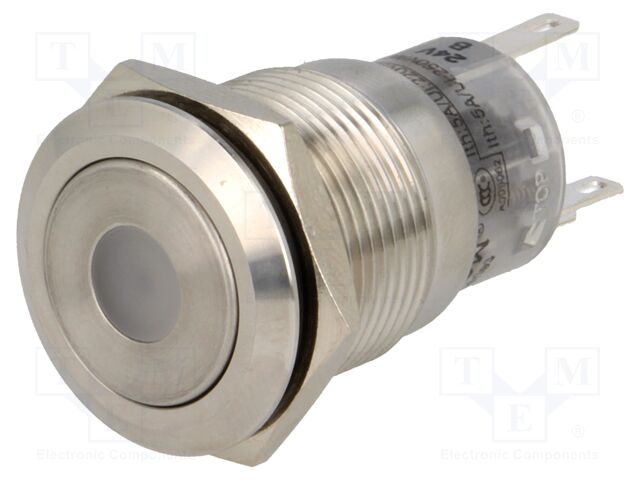

LAS1-AGQ-11D/B/24V

LAS1-AGQ-11D/B/24V ONPOW

pVersion=0046&contRep=ZT&docId=005056AB90B41EDAAED9469FF83780C7&compId=GQ19PF-10E.pdf?ci_sign=de6485db3045f1660cb788762312ae80e7299e29 pVersion=0046&contRep=ZT&docId=005056AB90B41EDAAED92A7942AAA0C7&compId=LAS1-AGQ-D%20.pdf?ci_sign=d49d5bc727dc16a60a6e214b575c5efcccda560b Hersteller: ONPOW
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPDT; 0.5A/220VAC; 1A/24VDC; IP67
Operating temperature: -20...55°C
Body material: stainless steel
Contact material: silver alloy
Type of switch: vandal resistant
Contacts configuration: SPDT
AC contacts rating @R: 0.5A / 220V AC
DC contacts rating @R: 1A / 24V DC
Switching method: ON-(ON)
Stable positions number: 1
Operating Force: 5N
Illumination: LED; point
Illumination voltage: 24V
Body colour: silver
Backlight colour: blue
Button shape: flat
Related items: S04-11D
Number of positions: 2
Ring shape: rounded
Mechanical durability: 1000000 cycles
Test voltage: 1.5kV
Max. contact resistance:: 50mΩ
IP rating: IP67
Mounting hole diameter: Ø19mm
Leads: for soldering
Electrical life: 50000 cycles
auf Bestellung 22 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
7+10.45 EUR
10+7.15 EUR
Mindestbestellmenge: 7
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details LAS1-AGQ-11D/B/24V ONPOW

Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; SPDT; 0.5A/220VAC; 1A/24VDC; IP67, Operating temperature: -20...55°C, Body material: stainless steel, Contact material: silver alloy, Type of switch: vandal resistant, Contacts configuration: SPDT, AC contacts rating @R: 0.5A / 220V AC, DC contacts rating @R: 1A / 24V DC, Switching method: ON-(ON), Stable positions number: 1, Operating Force: 5N, Illumination: LED; point, Illumination voltage: 24V, Body colour: silver, Backlight colour: blue, Button shape: flat, Related items: S04-11D, Number of positions: 2, Ring shape: rounded, Mechanical durability: 1000000 cycles, Test voltage: 1.5kV, Max. contact resistance:: 50mΩ, IP rating: IP67, Mounting hole diameter: Ø19mm, Leads: for soldering, Electrical life: 50000 cycles.

Weitere Produktangebote LAS1-AGQ-11D/B/24V nach Preis ab 22.37 EUR bis 22.37 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
LAS1-AGQ-11D/B/24V Hersteller : ONPOW 19mm; momentary; ON-(ON); SPDT; stainless steel; pin terminals; front shape-flat; illuminated LED 24V; ring; blue; 1A; IP67; mechanical life: 1000000 cycles LAS1-AGQ-11D/B/24V ONPOW PRZ LAS1-AGQ-11D/B/24V
Anzahl je Verpackung: 5 Stücke
auf Bestellung 20 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
5+22.37 EUR
Mindestbestellmenge: 5
Im Einkaufswagen  Stück im Wert von  UAH
